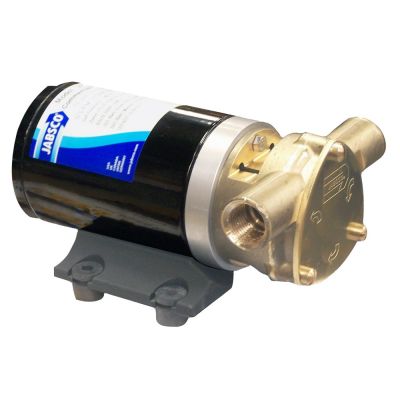

Jabsco Commercial Duty Water Puppy - 24v

Reliable Marine Pumping Power for Commercial and Recreational Vessels

Reliable Marine Pumping Power for Commercial and Recreational VesselsEngineered for continuous marine utility, bilge management, and general water transfer, the Jabsco Commercial Duty Water Puppy 24V (MFG: 18670-0943) delivers dependable high-flow output in harsh saltwater and freshwater environments. Built around a rugged, bronze pump head and flexible impeller design, this pump easily handles small bilge debris without clogging or damaging internal components. Whether installed on center-console fishing boats, commercial workboats, or motor yachts, the Water Puppy provides simple, long-lasting operational value.

Self-Priming Efficiency & Reversible Operation

The Water Puppy features impressive self-priming capability from dry up to 1.2 meters (4 feet), allowing flexible mounting locations above the waterline. Its fully enclosed, permanent magnet motor features a stainless steel shaft, ball-type shaft bearings, and sufficient torque to support reversible pump operation. With a minimal count of wearing parts, the simple internal mechanics ensure easy maintenance and long service intervals.

Flexible Port Connections & Safety Certifications

To simplify installation across standard marine hose configurations, the pump comes with multiple port options, including 1/2" Internal Pipe Threads, a 1" External Hose Barb, and an included adapter for 3/4" External Garden Hose Threads. Built to strict marine standards, the unit meets ISO 8846 Marine ignition protection requirements and ISO 8849 Marine bilge pump standards for safe operation n engine compartments.

Frequently Asked Questions – Jabsco Water Puppy Pump 18660-0121

Can the Jabsco Water Puppy pump run dry?

No. The Jabsco Water Puppy 18660-0121 should not be operated without liquid. The liquid being pumped lubricates the flexible impeller, and running the pump dry can cause overheating and premature impeller damage. Turn off the pump immediately if the water supply stops or the pump loses prime.

What is the difference between the Jabsco Water Puppy and the Ballast Puppy?

The Jabsco Water Puppy 18660-0121 is a general-purpose flexible-impeller pump designed for applications such as bilge pumping, livewell circulation and general water transfer. The Jabsco Ballast Puppy is designed specifically for wakeboard ballast systems and features reversible pumping for filling and emptying ballast tanks. The Ballast Puppy uses a polyurethane impeller and incorporates protection against extended dry running.

Can the Jabsco Water Puppy pump diesel fuel or oil?

The standard Jabsco Water Puppy 18660-0121 is equipped with a neoprene impeller. For certain oil-handling applications, Jabsco offers an oil-resistant nitrile replacement impeller. However, compatibility depends on the exact fluid, pump configuration and operating conditions. Verify compatibility with Jabsco before using the pump to transfer diesel fuel or other petroleum products. Do not use the pump for gasoline or other flammable liquids unless the manufacturer explicitly approves the specific application.

What is the maximum flow rate of the Jabsco Water Puppy 18660-0121?

The Jabsco Water Puppy 18660-0121 has a maximum published flow rate of approximately 6.3 gallons per minute (GPM), or 23.8 liters per minute, at 5 feet of total head. Actual flow varies with suction lift, discharge pressure, hose dimensions and plumbing configuration.

What hose size does the Jabsco Water Puppy 18660-0121 use?

The pump features 1/2-inch NPTF internal pipe threads and 1-inch external hose-barb ports. It also includes adapters for connecting 3/4-inch female garden-hose fittings. Check the fitting type and dimensions before installing hoses or replacement connections.

How high can the Jabsco Water Puppy lift water?

The Jabsco Water Puppy 18660-0121 has a published dry-prime suction lift of approximately 4 feet (1.2 meters) and can achieve a lift of up to 20 feet (6.1 meters) when primed, according to the manufacturer's documentation. Actual performance depends on installation conditions and the overall pumping system.

Does the Jabsco Water Puppy need to be primed?

The Jabsco Water Puppy is a self-priming flexible-impeller pump. It can lift liquid from below the pump when installed within its specified suction-lift limits. Airtight suction connections and proper installation help ensure reliable priming and reduce the risk of impeller damage.

Can the Jabsco Water Puppy operate against a closed valve?

No. Do not operate the Jabsco Water Puppy against a closed discharge valve or blocked outlet. Restricting the discharge can cause excessive pressure and damage to the pump or plumbing system. Ensure the discharge path is open before starting the pump.

Can the Jabsco Water Puppy be submerged?

The pump motor must be installed in a dry, ventilated location and must not be submerged. Follow the manufacturer's installation instructions to protect the motor and electrical components from water exposure.

What replacement impeller fits the Jabsco Water Puppy 18660-0121?

The manufacturer's parts documentation identifies impeller kit 6303-0001-P for the neoprene configuration and 6303-0003-P for the nitrile configuration. Confirm the exact pump model, existing impeller and intended application before ordering a replacement.

What voltage does the Jabsco Water Puppy 18660-0121 require?

The Jabsco Water Puppy 18660-0121 is a 12-volt DC pump. Use a suitable DC power supply and follow the manufacturer's electrical wiring and circuit-protection recommendations during installation.

Where can I find the Jabsco Water Puppy installation manual?

Consult the official Jabsco 18660-series installation and operation manual for complete specifications, installation instructions, maintenance procedures and replacement parts information.

Manufacturer documentation: https://www.xylem.com/siteassets/brand/jabsco/resources/manual/jabsco-puppy-series-18660-0121-iom-43000-0737_rev_d.pdf
