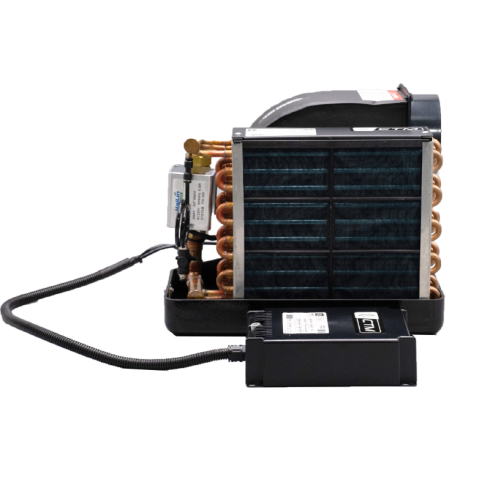

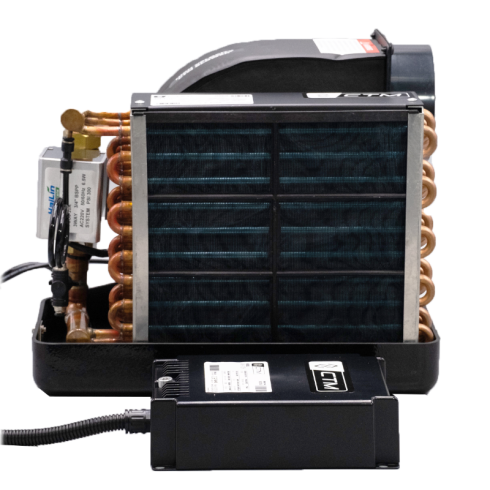

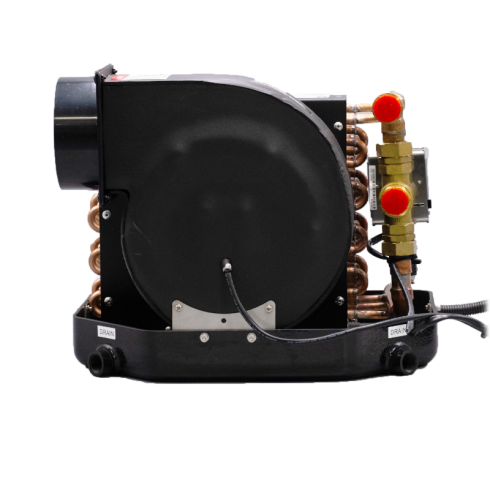

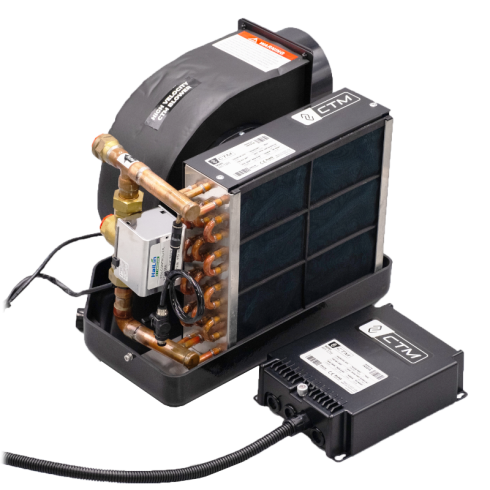

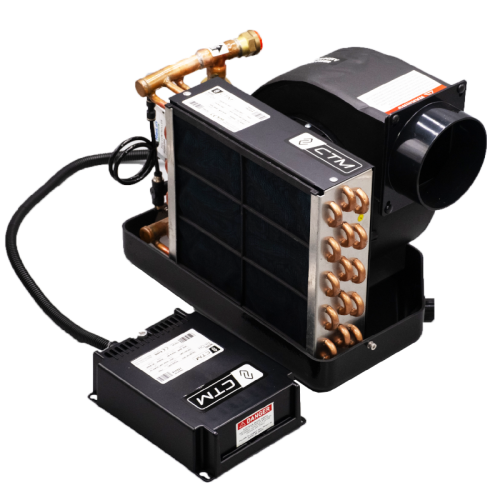

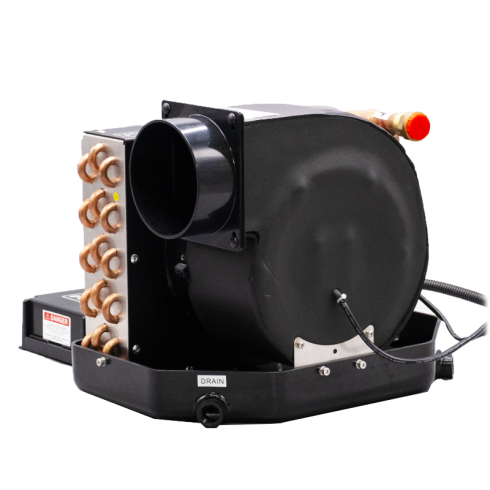

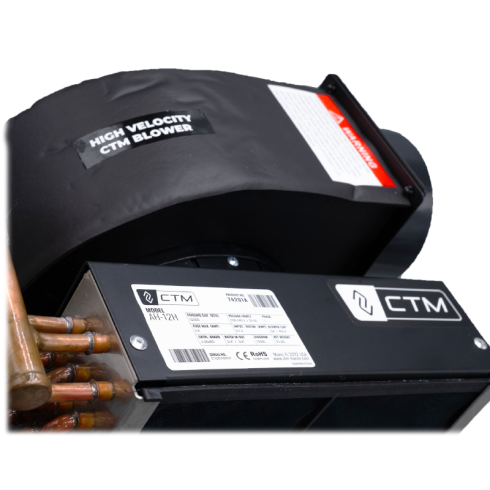

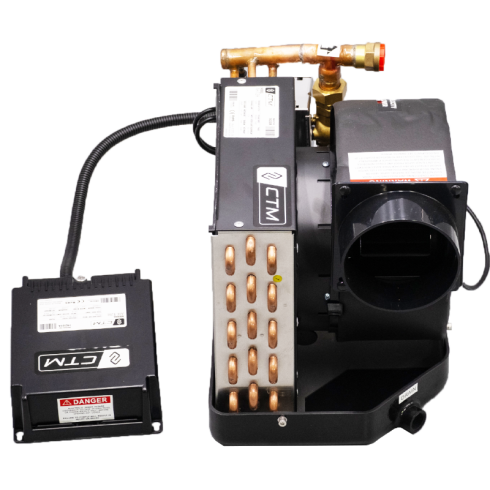

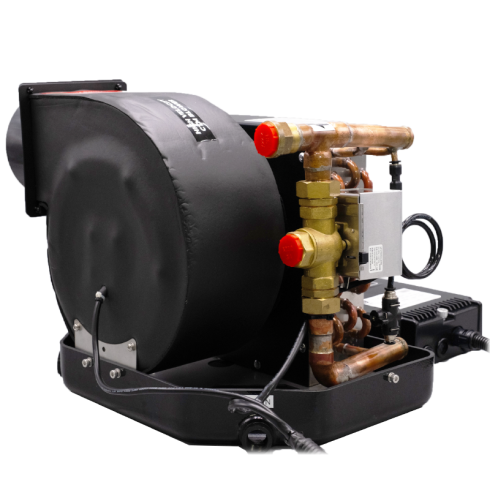

CTM AH-12H Air Handler / Fan Coil 12,000 BTU - Flow Control Valve - 230V - 50/60HZ

By buying this product you can collect up to 191 Citimarine points. Your cart will total 191 points that will be converted into a voucher of $19.10 towards your next purchase! Must be logged in to collect points.

CTM AH-12H Air Handler / Fan Coil 12,000 BTU - Flow Control Valve - 230V - 50/60HZ

Name: CTM AH-12H Air Handler / Fan Coil 12,000 BTU - Flow Control Valve - 230V - 50/60HZ
Brand: CTM Marine
SKU: 74201A
Availability: InStock

50/60 HzDual Frequency

Cooling or HeatingReverse Cycle

Flow Control ValveIncluded

2-YearWarranty

Reference: 74201A

Available Online: 29

Ft. Lauderdale: 0

Miami: 30

$1,789.00

Add Elite II and 8-pin Control Cable (10ft) - $195

Quantity

Free US Shipping on This Item!*

Available for Store Pickup!

International Shipping Calculator

Return Policy

CTM AH-12H Air Handler - 12,000 BTU - Flow Control Valve - 230V - 50/60HZ

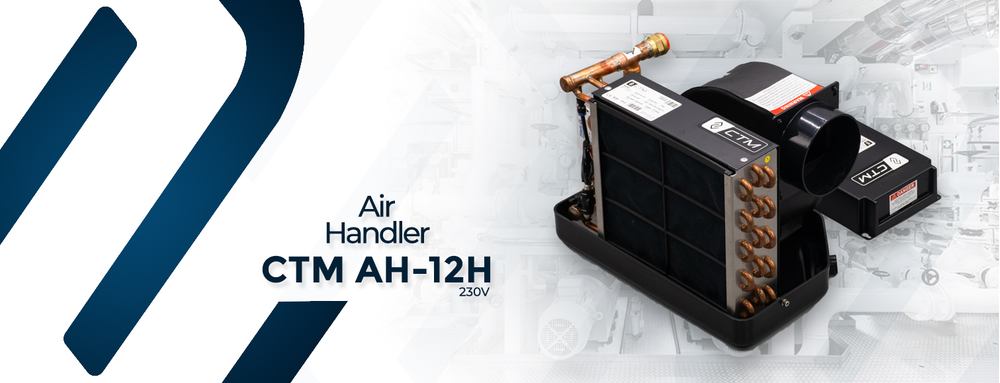

CTM AH-12H 12,000 BTUS Evaporator Unit

12,000 BTUs of powerful, quiet, and efficient cooling. 230V. Stainless steel bolts and stainless steel structural pan ensure long-lasting, corrosion-proof air handler performance in even the toughest of marine environments. 2-Year Warranty*.

The quiet, powerful, and efficient CTM Marine Air Handler Unit is a great option for new installs but also works as the perfect drop-in replacement for all major marine A/C brands including Dometic, Marine Air, and Cruisair.

CTM has taken nearly a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — as well as where other major brands could be improved — CTM has created a split marine condensing unit that raises the bar on quality and performance.

Specifications:

Capacity: 12,000 BTU

Voltage: 208-240 V

Cycle: 50-60 Hz

Refrigerant Type: R410A

Blower Airflow: 347 CFM

Blower Speed: 1200 RPM

Phase: 1

Input rotor Amps: 0.7 A

Locked Rotor Amps: 60 A

Fuse Max.: 5A




Seawater Inlet Connection NPT: (3/4 in) / (6.35 mm)




Seawater Outlet Connection NPT: (3/4 in) / (6.35 mm)


Blower Duct Size: 5 in

Blower Capacitor: 3uF / 450V

Net Weight: 23 lbs / 10 kg

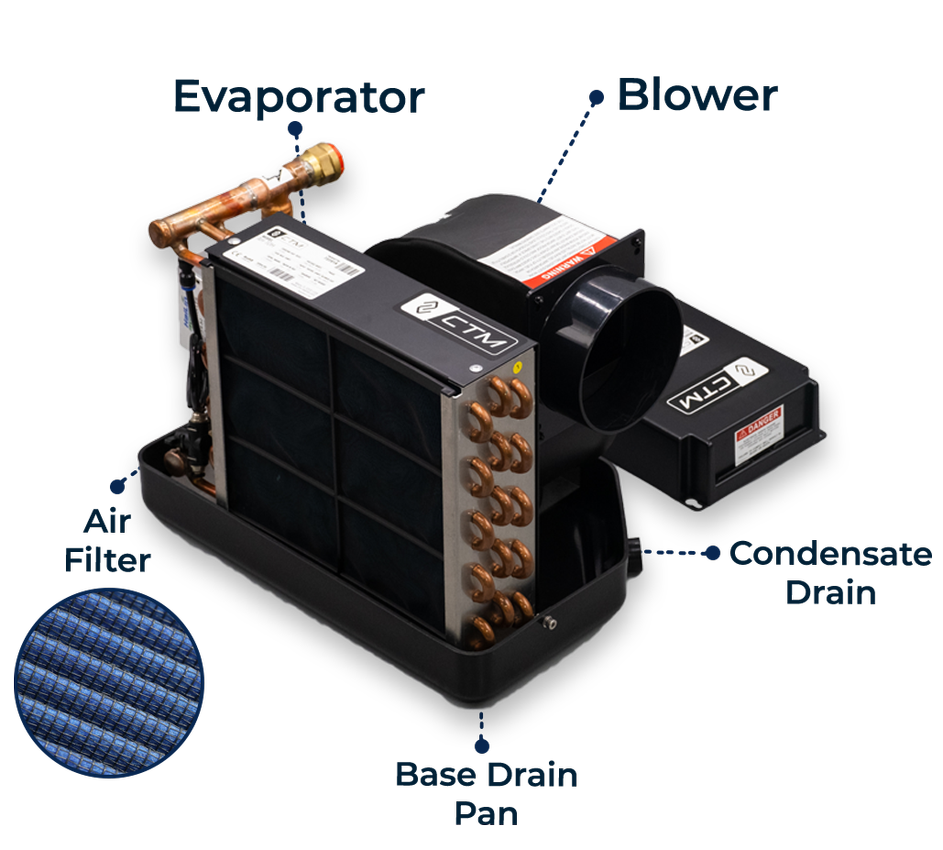

Features of the CTM AH-12H Fan Coil



Compact Design: Perfect drop-in replacement for all major marine A/C Brands. It's compact design makes it the perfect unit for small spaces.

Reusable Filter: Circulate clean air with reusable air filter. Remove, wash down, and put it back.


Quiet: No loud compressor noises thanks to the vibration isolation bases on under the compressor.

Stainless Steel Frame Base: Corrosion-resistant stainless steel frame base will not rust or fall apart. Long-lasting and made to withstand the harsh marine environment.

Dimensions:

W - Width: 16.1 in / 410 mm

D - Depth: 10.7 in / 273 mm

H - Height: 13.3 in / 338 mm

Universal Control Board Layout

Compatible with Most Thermostats


Smart Touch / Easy Touch	CTM Elite II	Passport I/O	SMXir

Because the CTM unit comes with the Universal Control board, it should work with the controller you currently have. Supported controllers include the SMXir, Passport I/O, Smart Touch, and Elite II. However, there are some older versions of the SMXir and Passport i/o controllers that don't have the firmware to work with the new universal board. A newer version of the SMXir or the Passport i/o.

Notes if replacing a Dometic AU-HV

The CTM AH-12H 230V Marine Air Conditioning Unit works as an excellent replacement for the Dometic AU-HV Air Handlers. There are some specs that should be taken into consideration when replacing one of the units previously mentioned

- Waterline connections need to be adapted from 1/2" to 3/4". The CTM air handlers will come with the needed adaptor.

- Dimensions wise the CTM AH is very similar to the Dometic and Cruisair air handler units, so there shouldn’t be any issues when replacing your current unit with the AH. However, it is recommended that you double-check your current installation space and the CTM AH’s specs in order to avoid any issues when installing.

Warranty

The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.

In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.

For more detailed information please download the Manual and refer to page 17.
