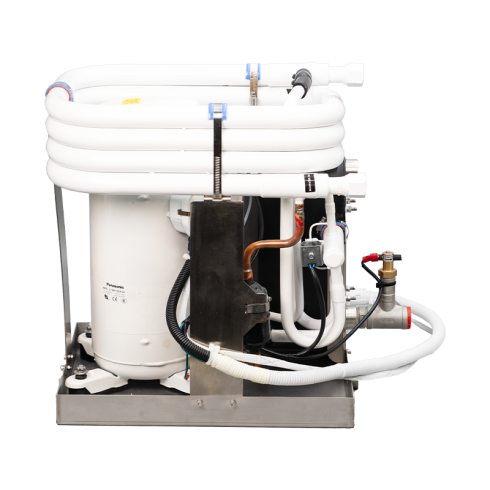

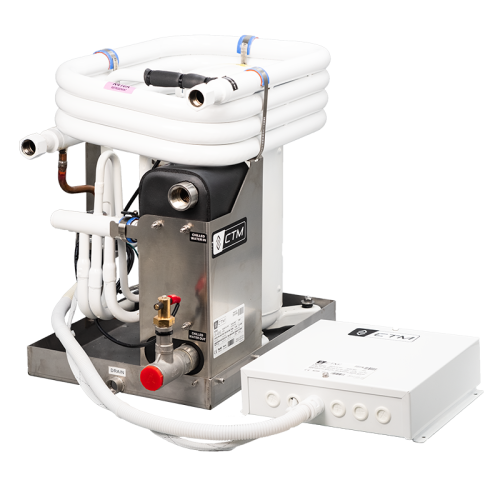

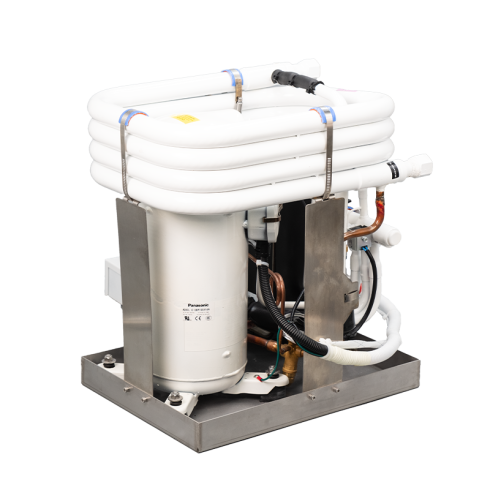

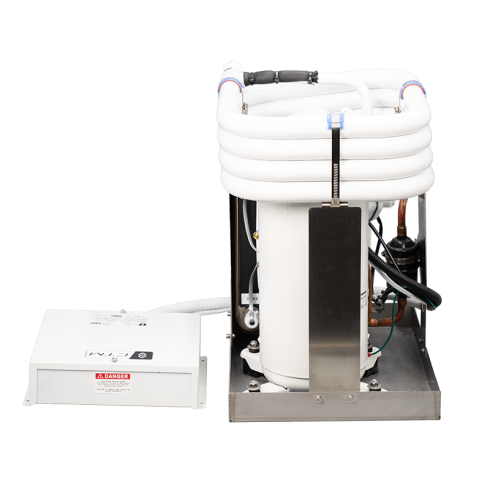

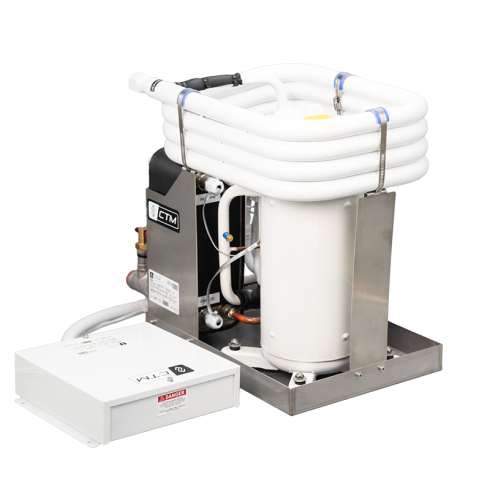

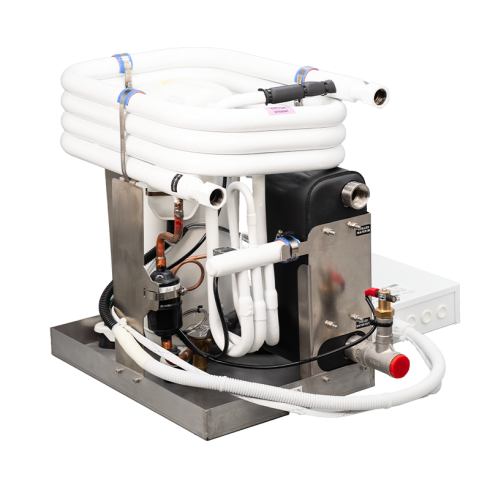

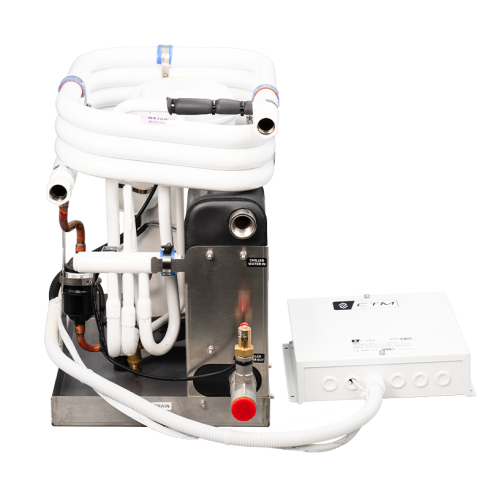

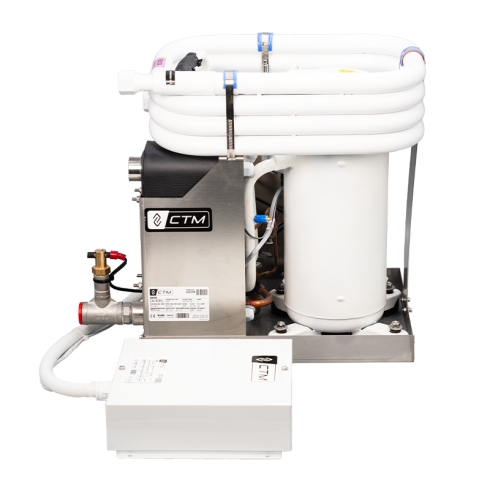

CTM CW-48HS Marine Chiller System 48,000 BTU - 230V - 50/60HZ - R410A w/Soft Start

50/60 HzDual Frequency Cooling or HeatingReverse Cycle Titanium (Ti) CoilsAnti-Corrosive 2-YearWarranty

Freight Shipping

Reference: 33521W
In Stock: 21
$7,599.00

Shipping Calculator
Freight Shipping on this item*
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

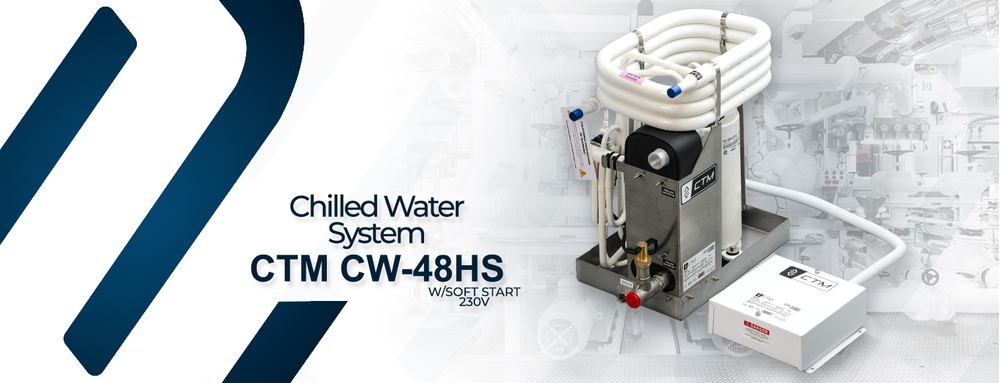

CTM CW-48HS 48,000 BTU Marine Chiller System with Titanium Coils - 230V, 50/60Hz, R410A - With Soft Start

Introducing the state-of-the-art CTM Marine Chiller System, equipped with titanium coils for ultimate performance and durability.

Designed with efficiency in mind, CTM Marine Chillers ensure consistent cooling in even the harshest of marine environments. Titanium coils provide unparalleled resistance to corrosion, making it the perfect material for your onboard air conditioning solution.

The CTM Marine Chiller unit is a great option for not only new installs but also works as an excellent drop-in replacement option for all major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Flagship.

CTM CW-24H Marine Chiller

CTM has taken over a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — has created a marine chiller system that builds on the performance, durability, and efficiency of the top chillers on the market.

The CTM is fully compatible with top Dometic, Cruisair, and Marine Air chiller systems, using the same DDC circuit board and controls, making replacement of those systems a breeze. With a compact footprint, CTM Marine Chillers are the perfect replacement for MCGX and TWCX chillers. For drop-in replacement recommendations, see the substitution table below.

Whether on a yacht, boat, or other marine vessel, you can count on 48,000 BTUs of powerful, quiet, and efficient cooling with your CTM CW-48HS Marine Chiller System. Experience the peace of mind that comes with investing in a high-quality, durable, and efficient cooling solution.

Every CTM Marine Chiller comes with an industry-standard 2-year warranty*, as well as knowledgeable and attentive customer service from CTM Marine and their extensive dealer network.

Soft Start Included - Maximize Your System’s Efficiency

CTM Marine’s 48,000 BTU Marine Chiller System includes a Soft Start board that is self-optimizing, and reduces start up current by 65-75% of the compressor's LRA (locked-rotor amperage). The Soft Start provides several benefits, including:

- Improves Compressor Performance: Soft starting reduces the initial current surge, which can improve the performance and extend the life of the compressor.

- Reduces Power Consumption: By gradually ramping up the voltage, a soft start reduces the peak power demand and can help reduce overall energy consumption.

- Enhanced Protection: Soft starting helps protect against overloading the electrical system, reducing the risk of damage to the electrical components and ensuring a safe and reliable operation.

- Improved Comfort: Soft starting can reduce the noise and vibrations associated with starting up a compressor, making the operation smoother and more comfortable.


Specifications:

CTM Chiller Dimensions CW-48HS
Capacity
48,000 BTU
Voltage
220 / 230 V
Phase
1
Dual Cycle Compressor
50Hz @ 220V / 60Hz @ 230V
Refrigerant Type
R410A
Current Consumption Cool / Heat
14.0 A / 19.0 A
Locked Rotor Amps
42 A
Fuse Max. / Min.
65 A / 40 A
Water In / Out
3/4" / 3/4"
Chill Water In / Out
1.0" / 1.0"
Suggested Water Flow
1000 GPH
Net Weight
150 lbs / 68 kg

##paytomorrow_mobile##

Features of the CTM CW-48HS Marine Chiller / 48000 BTUs
CTM Features.png

   Compact Design
Designed to save space on board, making it an ideal choice to replace existing units. Lighter and easier to carry with a sleek and modern appearance.

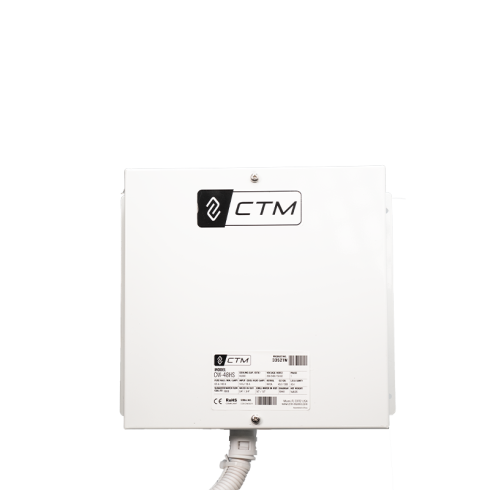

Electrical-Box.jpg   Metallic Electrical Box
Corrosion resistance electrical box, ensuring that electrical components inside are protected from rust and other forms of corrosion. It also, provides effective grounding and shielding against electromagnetic interference.

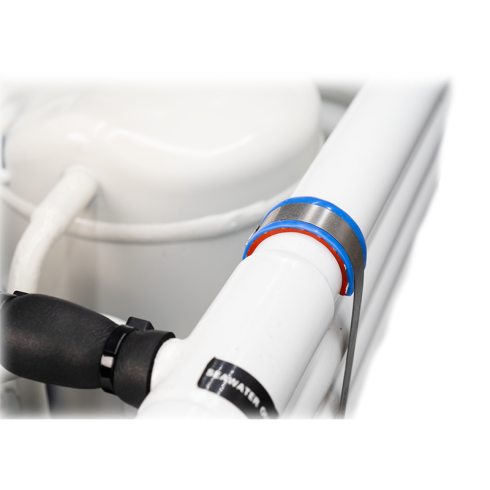

   Titanium Condenser Coil
The most corrosion-resistant material available for seawater cooling coils. 40% more resistant than copper, titanium coils guarantee top cooling performance and a rust-free environment.
   Stainless Steel Frame Base
Corrosion-resistant stainless steel frame base will not rust or fall apart. Long-lasting and made to withstand the harsh marine environment.
   Advanced MCC Control Board
The MCC Control Board (Made in USA) is a fully-compatible replacement for the DDC® control board, offered with some Dometic/Marine Air Systems® chillers. MCC is a complete, standalone chiller controller that will reduce the need for manual intervention while increasing efficiency.
   Reverse Cycle Heating
Enjoy powerful cooling from your CW Chiller system with the option of heating if needed. Thanks to the reverse cycle it also works as a heat pump, you can switch to heating when temperatures get low without the need of a separate heating system.


CTM Chiller Dimensions

CW Chiller Unit Dimensions CW-48HS
W - Width
13 in / 332 mm
D - Depth
17.7 in / 450 mm
H - Height
19.6 in / 500 mm


Substitute the Following OEM Part Numbers

The CTM CW-48HS Marine Chiller System serves as the perfect drop-in replacement for the following chiller models, with a smaller footprint and using the same DDC circuit board and controls

CTM Unit Part Number Description Fits OEM Part number  OEM Description
33521W CW-48H 230V 50/60HZ 410A 260162039 MCGX48 2361 SMARTSTART
260162011 MCGX48 2363
260111435 TWCX48 2361 DDC 410A
260111443 TWCX48 2361 DDC 410A SS
260111418 TWCX48 2251 DDC 410A SS


CTM CW-48HS Chiller Control Board Diagram
CTM Chiller control box optimized.jpg

For More Information on CTM Marine Chillers

ctm logo and AC
How Do CTM Marine Chillers Compare to Dometic and Webasto Chiller Systems?

With the success of CTM Marine’s self-contained marine air conditioner line – 2,000+ CT units sold since its release in summer 2020 – CTM Marine has expanded its offerings to include split gas and now chilled water marine air conditioning systems, also known as marine chillers. Find out how CTM Marine's titanium chiller line stacks up against Dometic and Webasto's top titanium chiller systems - in performance, efficiency, price & more!

Read More
Best Marine AC
Marine Chiller System – The Ideal A/C System For Yachts

A marine chiller system, also known as a marine chilled water air conditioning system, is the perfect marine AC unit for larger boats and yachts. If your boat has three or more independent areas requiring cooling, here's why you should consider installing a chiller system...

Read More

CTM Marine Warranty

The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed  (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.

In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.

For more detailed information please download the Manual and refer to page 17.
