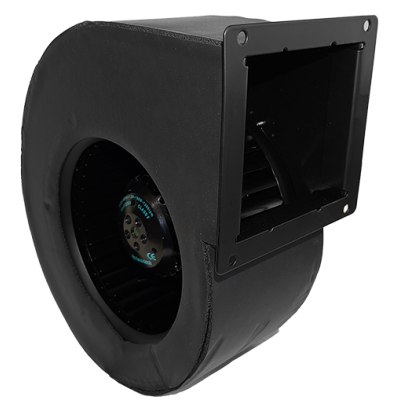

CTM Blower (Turbo) Assembly For Marine A/C Units (CT, DTU, STX, STQ, SXR, VTD, VCP & VRP) - 10K to 12K BTU's - 230V
CTM Blower assembly for Marine Self-Contained air conditioning units. Works with units from 10,000 to 12,000 BTUs - 230V. It is fully compatible with CTM, Dometic, Cruisair, and Marine Air (CT, DTU, STX, STQ, SXR, VTD, VCP, VRP) units 90-day warranty.
Reference: 40023B
In Stock: 38
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
CTM Turbo Blower Assembly For Self-Contained Units, 10k to 12k BTU's - 230V
Works with units from 10,000 to 12,000 BTU's - 230V. It is fully compatible with CTM, Dometic, Cruisair, and Marine Air (CT, DTU, STX, STQ, SXR, VTD, VCP, VRP) units. 90-day warranty.
Blower Connection Diagram
.png)
Technical Specifications
| Voltage | 230 V |
| Phase | 1 Ph |
| Frequency | 50/60 Hz |
| Capacitor | 3uf |
| Airflow | 347 CFM |
| Speed | 1220/1200 RPM |
| Power | 121/153 W |
| Current Max | 0.54/0.68 A |
| Noise | 68 dB |
| Working Temperature | -40 + 65 C |
| Motor Technology | AC |
Dimensions
Compatible with the following units
| Model | Part Number |
| CTM CT-10 230V 50/60HZ | 22201C |
| ECD10KZ/1-HV 410A KIT, 220-240 50/60 Hz | 207500010 |
| DTU10 230V 60HZ 410A | 205162100 |
| STQ10C-410A 230V 60HZ | 205563450 |
| STX10C-410A 230V 60HZ | 205563455 |
| VTD10KZ-410A 230V 60HZ | 205563400 |
| DTG10-2371-410A 6MR | 205162109 |
| DTU10-2251-410A | 205161100 |
| DTG12-2371-410A 6MR | 205162129 |
| DTU12 230V 60HZ 410A | 205162120 |
| STQ12C-410A 230V 60HZ | 205563550 |
| STX12C-410A 230V 60HZ | 205563555 |
| VTD12KZ-410A 230V 60HZ | 205563500 |
