CTM CW-24H Marine Chiller System 24,000 BTU - 230V - 50/60HZ - R410A

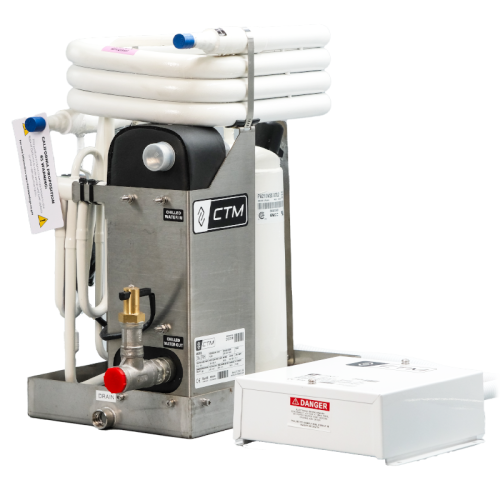

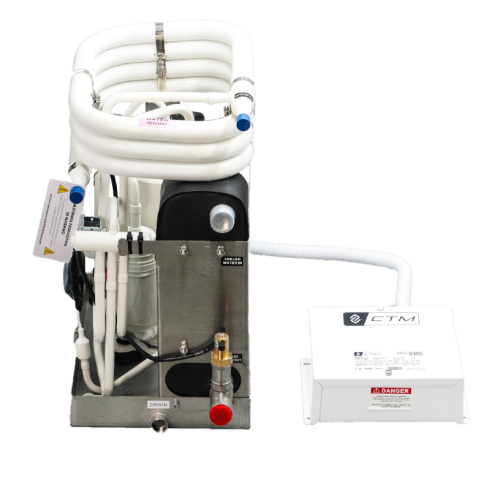

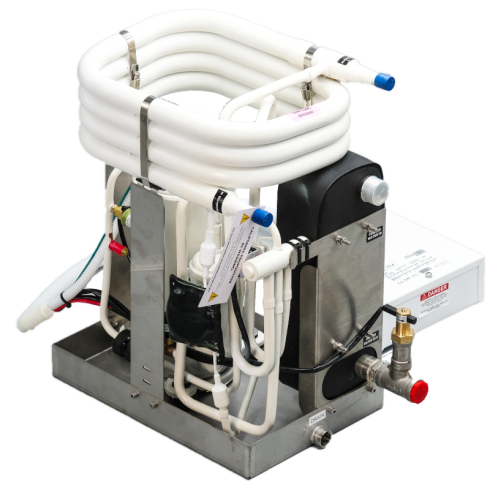

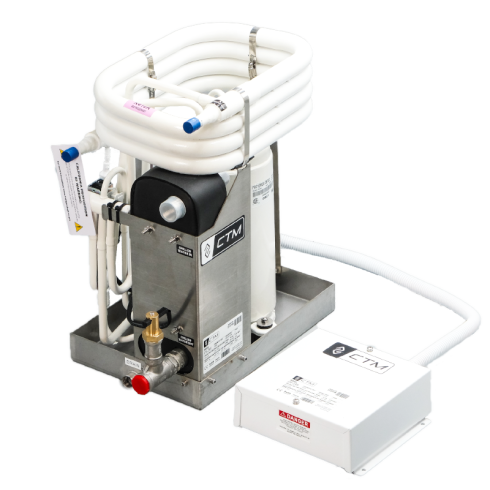

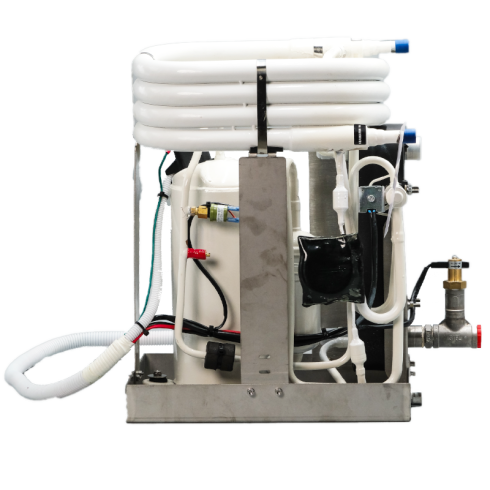

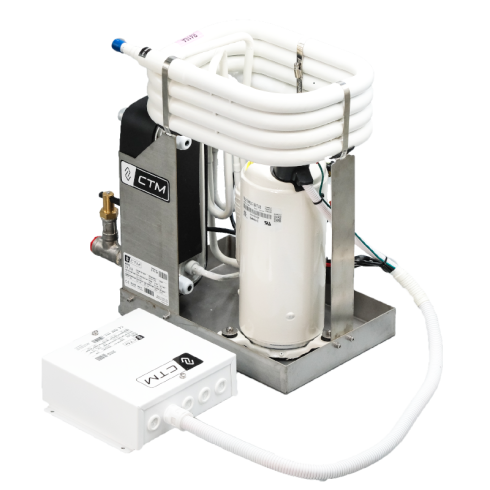

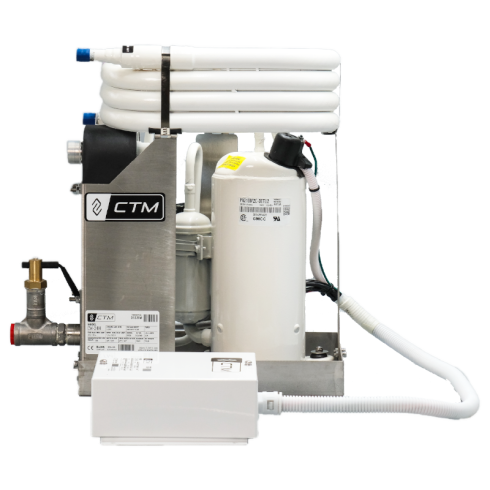

CTM CW-24H 24,000 BTU Marine Chiller System with Titanium Coils - 230V, 50/60Hz, R410A

Introducing the state-of-the-art CTM Marine Chiller System, equipped with titanium coils for ultimate performance and durability.

Designed with efficiency in mind, CTM Marine Chillers ensure consistent cooling in even the harshest of marine environments. Titanium coils provide unparalleled resistance to corrosion, making it the perfect material for your onboard air conditioning solution.

The CTM Marine Chiller unit is a great option for not only new installs but also works as an excellent drop-in replacement option for all major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Flagship.

CTM has taken over a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — has created a marine chiller system that builds on the performance, durability, and efficiency of the top chillers on the market.

The CTM is fully compatible with top Dometic, Cruisair, and Marine Air chiller systems, using the same DDC circuit board and controls, making replacement of those systems a breeze. With a compact footprint, CTM Marine Chillers are the perfect replacement for MCGX and TWCX chillers. For drop-in replacement recommendations, see the substitution table below.

Whether on a yacht, boat, or other marine vessel, you can count on 24,000 BTUs of powerful, quiet, and efficient cooling with your CTM CW-24H Marine Chiller System. Experience the peace of mind that comes with investing in a high-quality, durable, and efficient cooling solution.

Every CTM Marine Chiller comes with an industry-standard 2-year warranty*, as well as knowledgeable and attentive customer service from CTM Marine and their extensive dealer network.

Specifications:

Capacity

24,000 BTU

Voltage

220 / 230 V

Phase

1

Dual Cycle Compressor

50Hz @ 220V / 60Hz @ 230V

Refrigerant Type

R410A

Current Consumption Cool / Heat

7.6 A / 9.0 A

Locked Rotor Amps

42 A

Fuse Max. / Min.

25 A / 16 A

Water In / Out

5/8" / 5/8"

Chill Water In / Out

3/4" / 3/4"

Suggested Water Flow

500 GPH

Net Weight

75 lbs / 34 kg

Features of the CTM CW-24H Marine Chiller / 24000 BTUs

CTM Marine Chiller Dimensions:

Substitutes the Following OEM Part Numbers

The CTM CW-24H Marine Chiller System serves as the perfect drop-in replacement for the following chiller models, with a smaller footprint and using the same DDC circuit board and controls.

How a Marine Chiller System Works

Marine chiller systems - also known as chilled water A/C systems - are a great choice for boats with several cabins. If three or more independent areas in a yacht need to be air-conditioned, a central marine chiller system is the right choice.

The chiller unit is placed in the engine room, providing chilled water or glycol to all cabins via a chilled water circuit. Air handlers are fitted in each cabin providing the required cooling capacities to the rooms. The system offers one control for the unit itself as well as separate panels for each cabin.

CTM CW-24H Chiller Control Board Diagram

For More Information on CTM Marine Chillers

How Do CTM Marine Chillers Compare to Dometic and Webasto Chiller Systems?

With the success of CTM Marine’s self-contained marine air conditioner line – 2,000+ CT units sold since its release in summer 2020 – CTM Marine has expanded its offerings to include split gas and now chilled water marine air conditioning systems, also known as marine chillers. Find out how CTM Marine's titanium chiller line stacks up against Dometic and Webasto's top titanium chiller systems - in performance, efficiency, price & more!

Read More

Marine Chiller System – The Ideal A/C System For Yachts

A marine chiller system, also known as a marine chilled water air conditioning system, is the perfect marine AC unit for larger boats and yachts. If your boat has three or more independent areas requiring cooling, here's why you should consider installing a chiller system...

Read More

CTM Marine Warranty

The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed  (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.

In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.

For more detailed information please download the Manual and refer to page 17.
