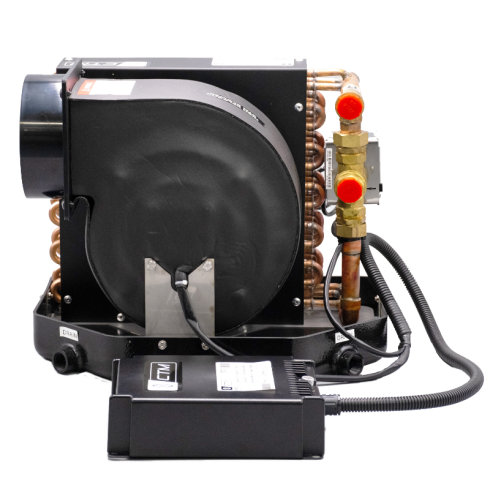

CTM AH-16H Air Handler / Fan Coil 16,000 BTU - Flow Control Valve - 230V - 50/60HZ

50/60 HzDual Frequency Cooling or HeatingReverse Cycle Flow Control ValveIncluded 2-YearWarranty

Reference: 75201A
In Stock: 48
$1,999.00

Free US Shipping on This Item!
Global Shipping Calculator
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

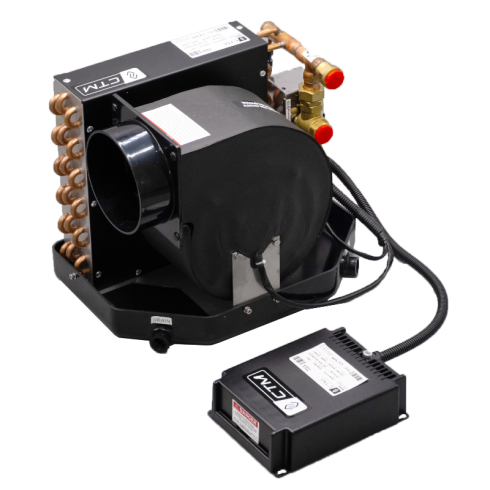

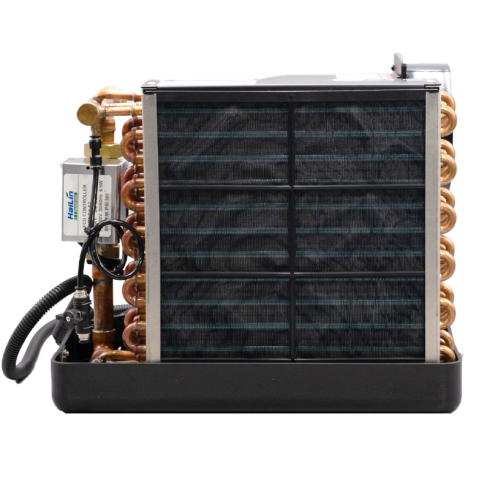

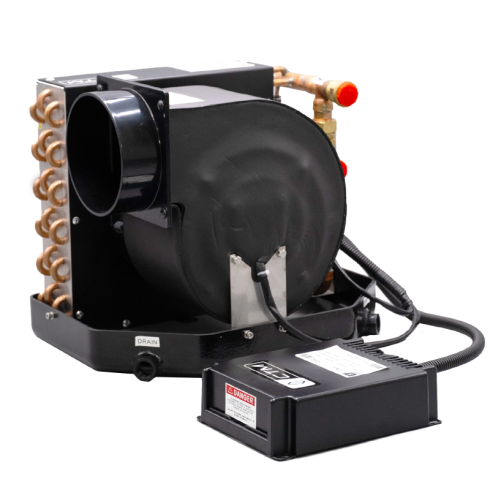

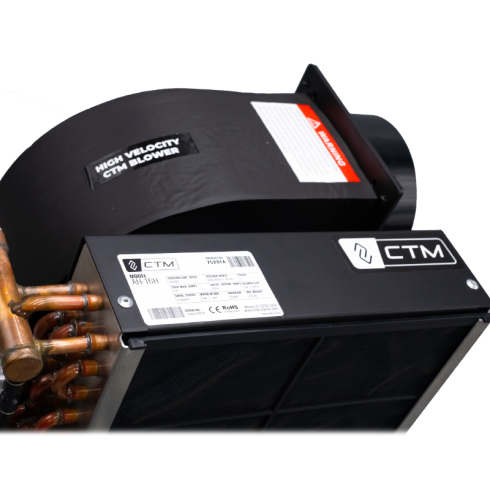

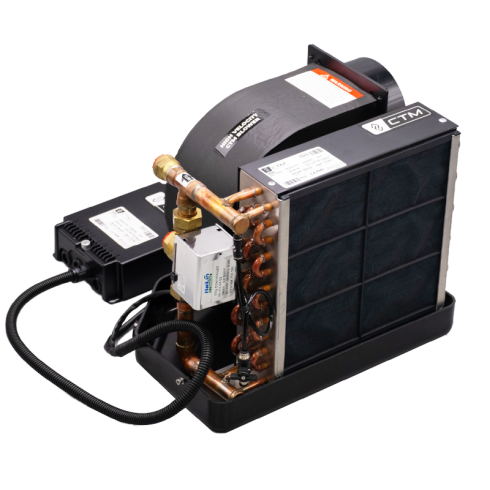

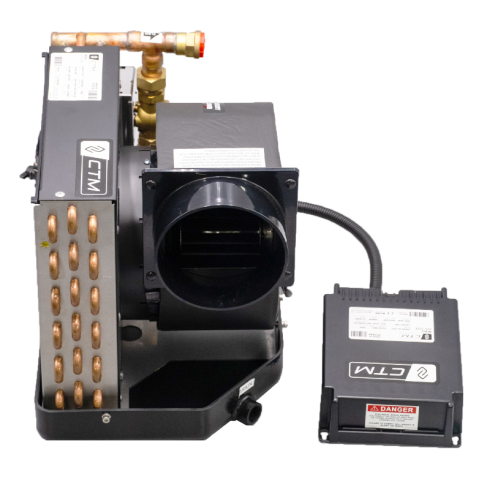

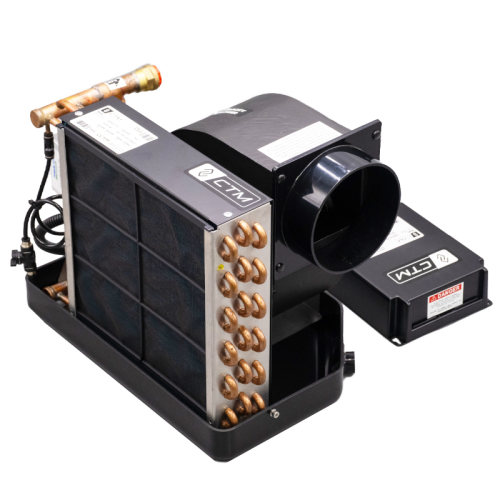

CTM AH-16H Air Handler - 16,000 BTU - Flow Control Valve - 230V - 50/60HZ

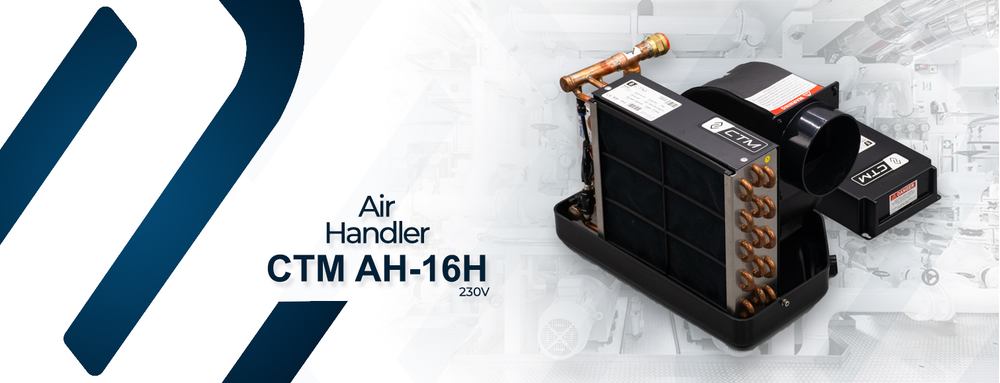

CTM AH-16H 16,000 BTUS Evaporator Unit

16,000 BTUs of powerful, quiet, and efficient cooling. 230V. Stainless steel bolts and stainless steel structural pan ensure long-lasting, corrosion-proof air handler performance in even the toughest of marine environments. 2-Year Warranty*.

The quiet, powerful, and efficient CTM Marine Air Handler Unit is a great option for new installs but also works as the perfect drop-in replacement for all major marine A/C brands including Dometic, Marine Air, and Cruisair.

CTM has taken nearly a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — as well as where other major brands could be improved — CTM has created a split marine condensing unit that raises the bar on quality and performance.

Specifications:

CTM Air Handler AH-16H - 230v
Capacity
16,000 BTU
Voltage
208-240 V
Cycle
50-60 Hz
Refrigerant Type
R410A
Blower Airflow
458 CFM
Blower Speed
1420 RPM
Phase
1
Input rotor Amps
0.9 A
Locked Rotor Amps
60 A
Fuse Max.
5A
Seawater Inlet Connection
(3/4 in) / (6.35 mm)
Seawater Outlet Connection
(3/4 in) / (6.35 mm)
Blower Duct Size
6 in
Blower Capacitor
5uF / 450V
Net Weight
28 lbs / 13 kg

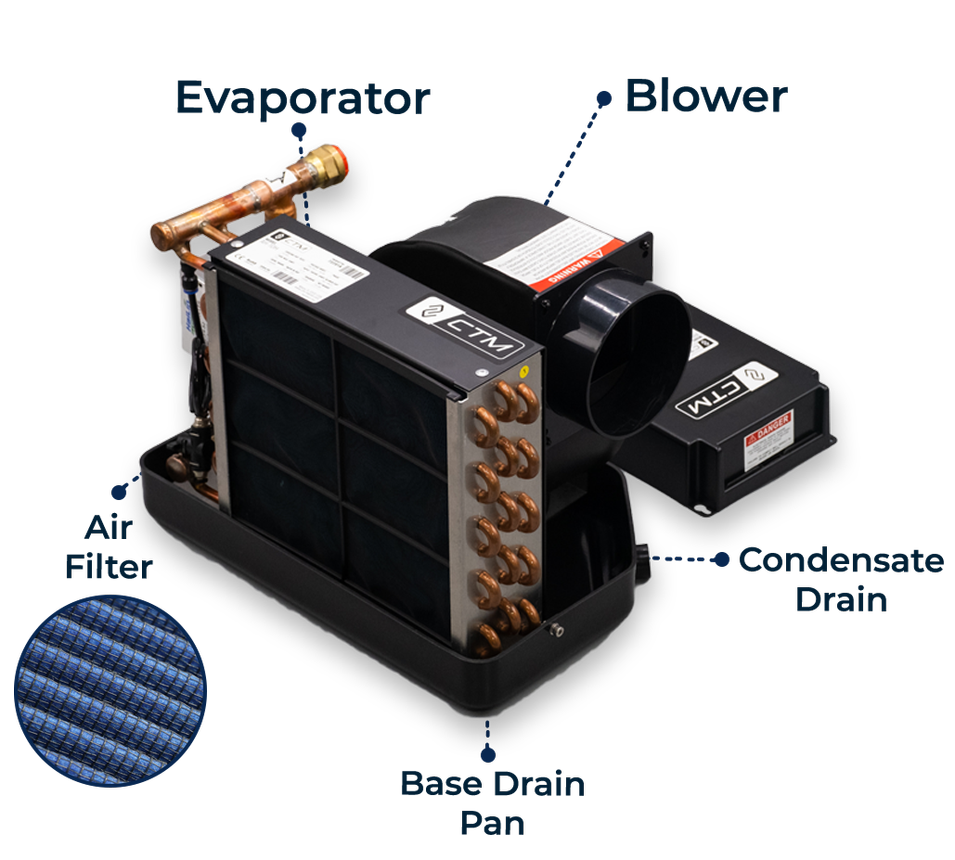

Features of the CTM AH-16H Fan Coil
CTM EV Features EV-6 - 115v

   Compact Design
Perfect drop-in replacement for all major marine A/C Brands. It's compact design makes it the perfect unit for small spaces.
Reusable Filter   Reusable Filter
Circulate clean air with reusable air filter. Remove, wash down, and put it back.
Quiet.png   Quiet
No loud compressor noises thanks to the vibration isolation bases on under the compressor.
   Stainless Steel Frame Base
Corrosion-resistant stainless steel frame base will not rust or fall apart. Long-lasting and made to withstand the harsh marine environment.

Dimensions:

AH-16H Unit Dimensions
W - Width
16.9 in / 430 mm
D - Depth
11.6 in / 295 mm
H - Height
13.8 in / 353 mm

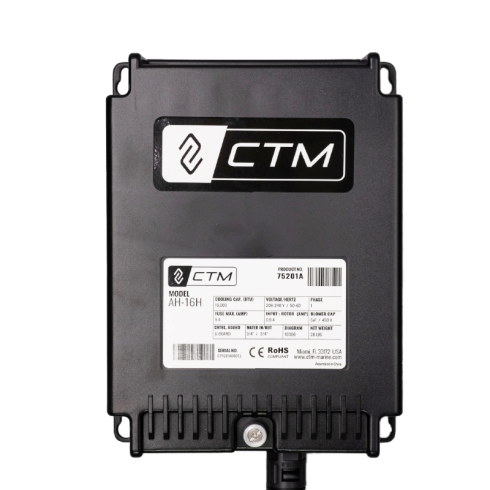

Universal Control Board Layout


Compatible with Most Thermostats

CTM Elite II Control.jpg
Smart Touch / Easy Touch CTM Elite II  Passport I/O SMXir

Because the CTM unit comes with the Universal Control board, it should work with the controller you currently have. Supported controllers include the SMXirPassport I/OSmart Touch, and Elite II. However, there are some older versions of the SMXir and Passport i/o controllers that don't have the firmware to work with the new universal board. A newer version of the SMXir or the Passport i/o.

Notes if replacing a Dometic AU-HV

The CTM AH-16H 230V Marine Air Conditioning Unit works as an excellent replacement for the Dometic AU-HV Air Handlers. There are some specs that should be taken into consideration when replacing one of the units previously mentioned

- Waterline connections need to be adapted from 1/2" to 3/4". The CTM air handlers will come with the needed adaptor.

- Dimensions wise the CTM AH is very similar to the Dometic and Cruisair air handler units, so there shouldn’t be any issues when replacing your current unit with the AH. However, it is recommended that you double-check your current installation space and the CTM AH’s specs in order to avoid any issues when installing.

Warranty

The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed  (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.

In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.

For more detailed information please download the Manual and refer to page 17.
