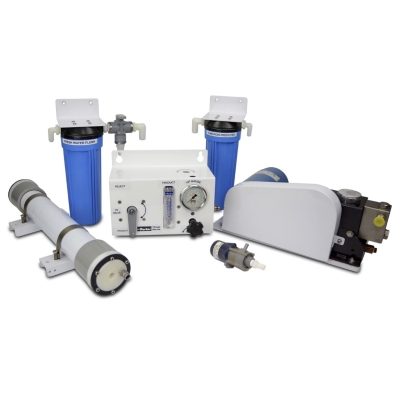

Parker Village Marine LTM-300 Watermaker - 300 GPD - 24V - Membranes Included
Village Marine LTM Series was designed for those sailors looking for simplicity and maximum reliability. Straightforward operation makes it a breeze for anyone to use and install regardless of their experience with watermakers. The LTM-300 works using DC motors making it ideal for sailboats looking to make long passages. Power supply 24V. 7 amps. 12.5 GPH (47.3 LPH) / 300GPD (1135 GPD). 92 lbs. Includes 2x Village Marine 33-3001 RO membranes already installed.
Reference: 90-8596PH
Reg Price: $7,105.25
CPlus Price:
$6,856.57
What is Citimarine Plus Membership?
Click here for details
Click here for details
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator
Village Marine LTM-300 12VDC 300GPD (1135 LPD) 90-8596PH - Includes 2x Village Marine 33-3001 RO Membranes
Village Marine LTM Series was designed for those sailors looking for simplicity and maximum reliability. Straightforward operation makes it a breeze for anyone to use and install regardless of their experience with watermakers. The LTM-300 works using DC motors making it ideal for sailboats looking to make long passages.
The LTM-300 Watermaker by PARKER. Compact and reliable supply of fresh water. Ideal choice for boaters who require small, energy-efficient watermakers. Easy to install / operate. Quality components go into Parker watermakers, ensuring years of safety and reliable service.
Technology:
• Electrical control panel Nema 4X with motor starter and pump controls
• Digital monitors
• Digital monitors
Meters/Monitors:
• Flowmeter to monitor freshwater production
• Digital water quality monitor displays purity of product water produced
• Glycerin filled pressure gauges
• Flowmeter to monitor freshwater production
• Digital water quality monitor displays purity of product water produced
• Glycerin filled pressure gauges
Service/Maintenance:
• Manual freshwater flush system (included standard)
• Manual freshwater flush system (included standard)
Pump:
• Compact stainless steel high-pressure pump is resistant to the corrosive seawater environment
• Magnetic drive low-pressure pump provides up to 10 psi of boost pressure to the filtration system, never requires a seal replacement
• Boost pump and prefilters are supplied as loose items
• Compact stainless steel high-pressure pump is resistant to the corrosive seawater environment
• Magnetic drive low-pressure pump provides up to 10 psi of boost pressure to the filtration system, never requires a seal replacement
• Boost pump and prefilters are supplied as loose items
Materials:
• 316 stainless steel pressure regulator is adjustable to allow operation in brackish or fresh water
• Sediment prefilter at 5 micron rating
• Sediment prefilter at 5 micron rating
Safety:
• Automatic diversion valve diverts water to overboard if quality drops below acceptable standards
• Automatic diversion valve diverts water to overboard if quality drops below acceptable standards
Accessories:
• Freshwater flush system (included standard) for manual flushing or (optional) timed automatic flush with adjustable interval and duration for set-and-forget flushing
• Optional Remote with water quality indicator, comes with 50 ft. cable
• Freshwater flush system (included standard) for manual flushing or (optional) timed automatic flush with adjustable interval and duration for set-and-forget flushing
• Optional Remote with water quality indicator, comes with 50 ft. cable
Specifications of 90-8596PH:
- Brand: Village Marine
- Application: LTM Series
- Configuration: Semi-Modular
- Product Type: Watermaker
- Voltz: 24
- Amps: 7
- GPH: 12.5
- LPH: 47.3
- GPD: 300
- LPD: 1135
- Pump: Aqua Pro® Pump, Titanium high pressure pump, Magnetic drive low pressure pump
- Reverse Osmosis Membrane: Hi-rejection Aqua Pro® membrane
- Filters: 5 micron pre-filter
- Power Options: AC
- Pressure Adjustment: Automatic
- Weight: 92 Lbs (42 kg)
Dimensions:
Village Marine LTM 145 Plumbing Diagram
