Parker LTM-1300 Watermaker - 54 GPH - 1300 GPD - Membrane Included

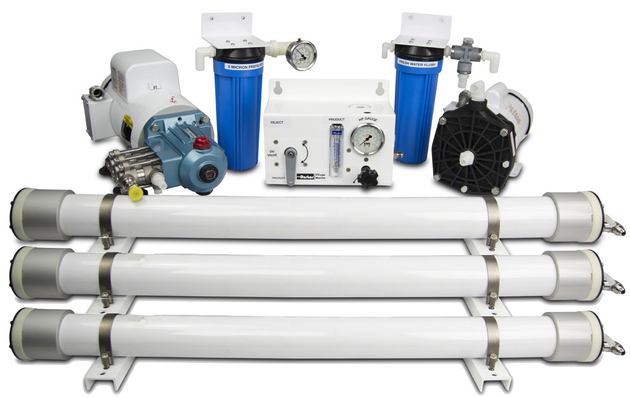

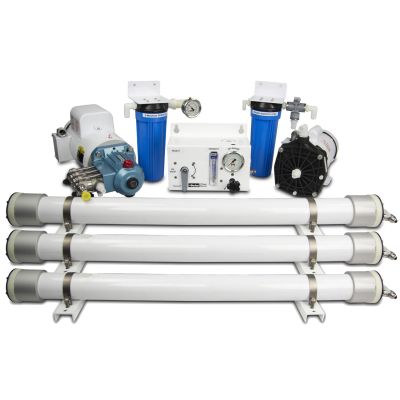

The Village Marine LTM-1300 Watermaker is compact and semi-modular, offering completely flexible installation. With a capacity of 54 GPH (1300 GPD) / 204 LPH, this desalinator is ideal for powerboats, sailboats, and small-to-mid-sized commercial vessel applications.
3 X (33-0238) MEMBRANES INCLUDED
Reference: 90-6054
Reg Price: $10,785.00
CPlus Price:
$10,407.53
What is Citimarine Plus Membership?
Click here for details
Click here for details
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator
Parker Racor Village Marine LTM-1300 Watermaker - For Sail Boat and Motor Boat Applications
The Village Marine LTM-1300 Watermaker is a great first mate for fishing, ocean crossings, extended voyages, or blue water cruising. It features a semi-modular and compact frame format that is able to be mounted above or below the water line, creating installation flexibility. (The boost pump and prefilters are supplied as loose items). The LTM-1300 uses the remote membrane rack.
The LTM-1300 is able to produce 54 GPH (1300 GPD), making this the best desalinator for fresh water independence when dock water supplies are unreliable. An ideal watermaker for power boats, sailboats, and small-to-mid-sized commercial vessel applications.
Technology:
• Electrical control panel Nema 4X with motor starter and pump controls
• Digital monitors
• Electrical control panel Nema 4X with motor starter and pump controls
• Digital monitors
Meters/Monitors:
• Flowmeter to monitor freshwater production
• Digital water quality monitor displays purity of product water produced
• Glycerin filled pressure gauges
Service/Maintenance:
• Flowmeter to monitor freshwater production
• Digital water quality monitor displays purity of product water produced
• Glycerin filled pressure gauges
Service/Maintenance:
• Manual freshwater flush system (included standard)
Pump:
• Compact stainless steel high pressure pump is resistant to the corrosive seawater environment
• Magnetic drive low pressure pump provides up to 10 psi of boost pressure to the filtration system, never requires a seal replacement
• Boost pump and prefilters are supplied as loose items
• Compact stainless steel high pressure pump is resistant to the corrosive seawater environment
• Magnetic drive low pressure pump provides up to 10 psi of boost pressure to the filtration system, never requires a seal replacement
• Boost pump and prefilters are supplied as loose items
Materials:
• 316 stainless steel pressure regulator is adjustable to allow operation in brackish or fresh water
• Sediment prefilter at 5 micron rating
• 316 stainless steel pressure regulator is adjustable to allow operation in brackish or fresh water
• Sediment prefilter at 5 micron rating
Safety:
• Automatic diversion valve diverts water to overboard if quality drops below acceptable standards
• Automatic diversion valve diverts water to overboard if quality drops below acceptable standards
Accessories:
• Freshwater flush system (included standard) for manual flushing or (optional) timed automatic flush with adjustable interval and duration for set-and-forget flushing
• Optional Remote with water quality indicator, comes with 50 ft. cable
• Freshwater flush system (included standard) for manual flushing or (optional) timed automatic flush with adjustable interval and duration for set-and-forget flushing
• Optional Remote with water quality indicator, comes with 50 ft. cable

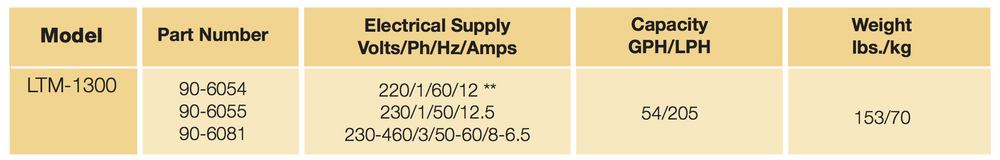

Specifications
Brand: Village MarineApplication: Leisure
Configuration: Semi-Modular
Product Type: Watermaker
Voltz: 220, 230, 230-460
Ph: 1, 3
Hz: 50, 60, 50-60
Amps: 12, 12.5, 8-6.5
GPH: 54
GPD: 1300
LPH: 205
Pump: Aqua Pro® Pump, Titanium high pressure pump, Magnetic drive low pressure pump
Reverse Osmosis Membrane: Hi-rejection Aqua Pro® membrane(s)
Filters: 5 micron pre-filter
Power Options: AC
Pressure Adjustment: Automatic
Weight: 153 Lbs.
Electrical Requirements: See Brochure Under Product Support
Pump: Aqua Pro® Pump, Titanium high pressure pump, Magnetic drive low pressure pump
Reverse Osmosis Membrane: Hi-rejection Aqua Pro® membrane(s)
Filters: 5 micron pre-filter
Power Options: AC
Pressure Adjustment: Automatic
Weight: 153 Lbs.
Electrical Requirements: See Brochure Under Product Support
Dimensions
Village Marine LTM 500 Plumbing Diagram
