Parker LTM-800 Watermaker - 33 GPH - 800 GPD - Membrane Included

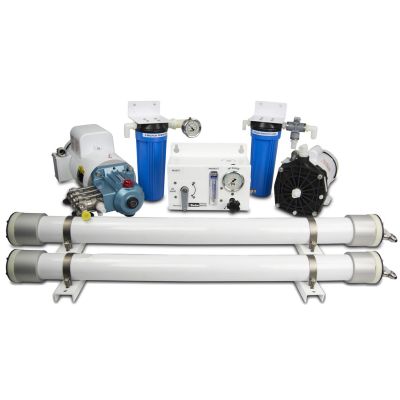

The Village Marine LTM-800 Watermaker is compact and semi-modular, offering a completely flexible installation. With a capacity of 33 GPH (800 GPD) / 125 LPH, this desalinator is ideal for powerboats, sailboats, and small-to-mid-sized commercial vessel applications.


Parker Racor watermaker

Reference: 90-6049
Reg Price: $8,531.00
CPlus Price: $8,232.42
What is Citimarine Plus Membership?
Click here for details
Volts / Ph / Hz / Amps

Shipping Calculator
Freight Shipping on this item*
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator
Parker Racor Village Marine LTM-800 Watermaker - For Sail Boat and Motor Boat Applications
LTM-800 Watermaker

The Village Marine LTM-800 Watermaker is a great first mate for fishing, ocean crossings, extended voyages, or blue water cruising. It features a semi-modular and compact frame format that is able to be mounted above or below the waterline, creating installation flexibility. (The boost pump and prefilters are supplied as loose items). The LTM-800 uses the remote membrane rack.
The LTM-800 is able to produce 33 GPH (800 GPD), making this the best desalinator for freshwater independence when dock water supplies are unreliable. An ideal watermaker for powerboats, sailboats, and small-to-mid-sized commercial vessel applications.

• Electrical control panel Nema 4X with motor starter and pump controls
• Digital monitors

• Flowmeter to monitor freshwater production
• Digital water quality monitor displays purity of product water produced
• Glycerin filled pressure gauges

• Manual freshwater flush system (included standard)

• Compact stainless steel high-pressure pump is resistant to the corrosive seawater environment
• Magnetic drive low-pressure pump provides up to 10 psi of boost pressure to the filtration system, never requires a seal replacement
• Boost pump and prefilters are supplied as loose items

• 316 stainless steel pressure regulator is adjustable to allow operation in brackish or freshwater
• Sediment prefilter at 5-micron rating

• Automatic diversion valve diverts the water overboard if quality drops below acceptable standards

• Freshwater flush system (included standard) for manual flushing or (optional) timed automatic flush with adjustable interval and duration for set-and-forget flushing
• Optional Remote with water quality indicator comes with 50 ft. cable


Brand: Village Marine
Application: Leisure
Configuration: Semi-Modular
Product Type: Watermaker
Voltz: 110, 220, 230, 230-460
Ph: 1, 3
Hz: 50, 60, 50-60
Amps: 6-4, 8, 9, 18
GPH: 33
GPD: 800
LPH: 125
Pump: Aqua Pro® Pump, Titanium high-pressure pump, Magnetic drive low-pressure pump
Reverse Osmosis Membrane: Hi-rejection Aqua Pro® membrane(s)
Filters: 5-micron pre-filter
Power Options: AC
Pressure Adjustment: Automatic
Weight: 100 Lbs.
Electrical Requirements: See Brochure Under Product Support

Ltm 1800 specs


LTM 500-1800 Dimensions

Village Marine LTM 800 Plumbing Diagram

Village Marine LTM-500 watermaker
