Parker Village Marine LTM-145 Watermaker - 145 GPD - 24V - Membrane Included
Village Marine LTM Series was designed for those sailors looking for simplicity and maximum reliability. Straightforward operation makes it a breeze for anyone to use and install regardless of their experience with watermakers. The LTM-145 works using DC motors making it ideal for sailboats looking to make long passages. Power supply 24v. 14.5 amps. 6 GPH (22 LPH)/145GPD (549 GPD). 92 Lbs (42 kg). Includes Village Marine 33-3001 RO membrane, already installed.
Reference: 90-8622PH
Regular Price: $5,316.00
CPlus Price: $5,262.84
What is Citimarine Plus Membership?
Click here for details
Click here for details
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

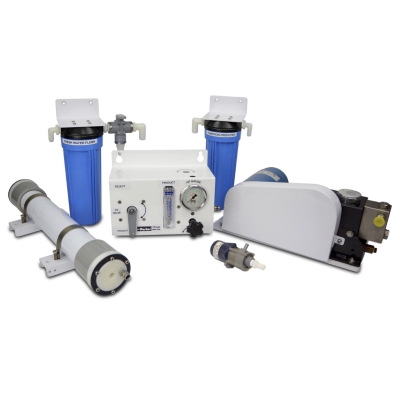

Village Marine LTM-145 24VDC 145GPD (549 LPD) 90-8622PH - Includes Village Marine 33-3001 RO Membrane
Village Marine LTM Series was designed for those sailors looking for simplicity and maximum reliability. Straightforward operation makes it a breeze for anyone to use and install regardless of their experience with watermakers. The LTM-145 works using DC motors making it ideal for sailboats looking to make long passages.
The LTM-145 Watermaker by PARKER. Compact and reliable supply of fresh water. Ideal choice for boaters who require small, energy-efficient watermakers. Easy to install / operate. Quality components go into Parker watermakers, ensuring years of safety and reliable service.
Technology:
• Electrical control panel Nema 4X with motor starter and pump controls
• Digital monitors
• Digital monitors
Meters/Monitors:
• Flowmeter to monitor freshwater production
• Digital water quality monitor displays purity of product water produced

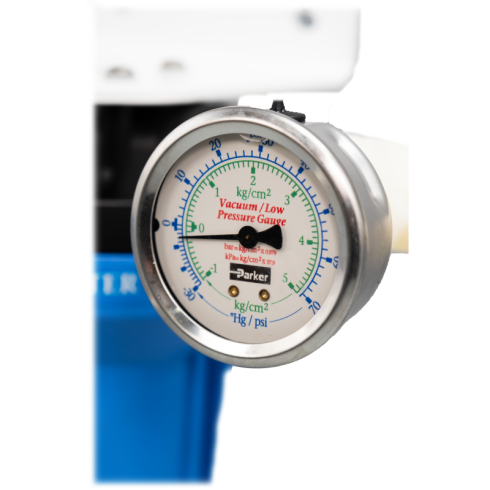

• Glycerin filled pressure gauges
• Flowmeter to monitor freshwater production
• Digital water quality monitor displays purity of product water produced
• Glycerin filled pressure gauges
Service/Maintenance:
• Manual freshwater flush system (included standard)
• Manual freshwater flush system (included standard)
Pump:

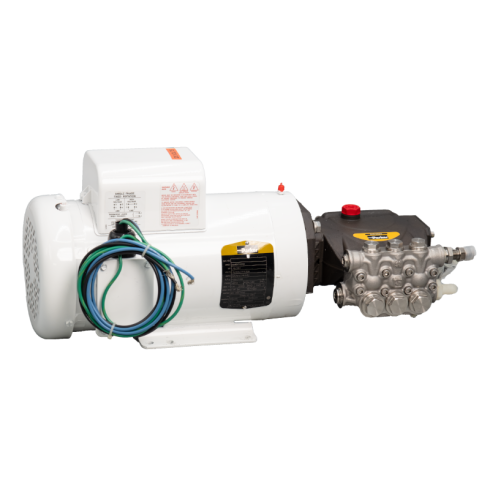

• Compact stainless steel high-pressure pump is resistant to the corrosive seawater environment

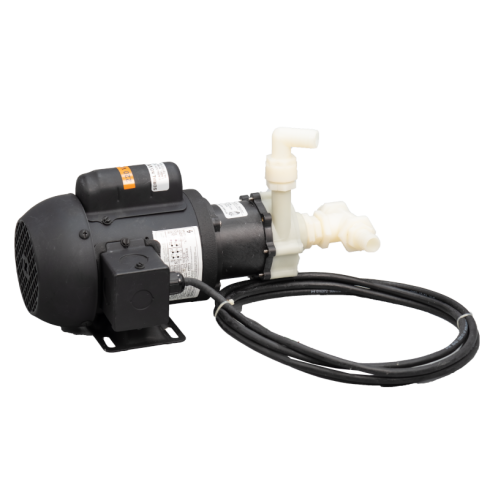

• Magnetic drive low-pressure pump provides up to 10 psi of boost pressure to the filtration system, never requires a seal replacement
• Boost pump and prefilters are supplied as loose items
• Compact stainless steel high-pressure pump is resistant to the corrosive seawater environment
• Magnetic drive low-pressure pump provides up to 10 psi of boost pressure to the filtration system, never requires a seal replacement
• Boost pump and prefilters are supplied as loose items
Materials:
• 316 stainless steel pressure regulator is adjustable to allow operation in brackish or fresh water

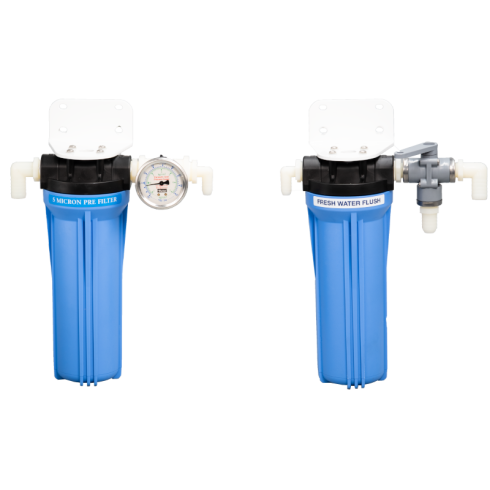

• Sediment prefilter at 5 micron rating
• Sediment prefilter at 5 micron rating
Safety:
• Automatic diversion valve diverts water to overboard if quality drops below acceptable standards
• Automatic diversion valve diverts water to overboard if quality drops below acceptable standards
Accessories:
• Freshwater flush system (included standard) for manual flushing or (optional) timed automatic flush with adjustable interval and duration for set-and-forget flushing
• Optional Remote with water quality indicator, comes with 50 ft. cable
• Freshwater flush system (included standard) for manual flushing or (optional) timed automatic flush with adjustable interval and duration for set-and-forget flushing
• Optional Remote with water quality indicator, comes with 50 ft. cable
Specifications of 90-8622PH:
- Brand: Village Marine
- Application: LTM Series
- Configuration: Semi-Modular
- Product Type: Watermaker
- Voltz: 24
- Amps: 14.5
- GPH: 6
- LPH: 23
- GPD: 144
- LPD: 552
- Pump: Aqua Pro® Pump, Titanium high pressure pump, Magnetic drive low pressure pump
- Reverse Osmosis Membrane: Hi-rejection Aqua Pro® membrane
- Filters: 5 micron pre-filter
- Power Options: AC
- Pressure Adjustment: Automatic
- Weight: 92 Lbs (42 kg)
Dimensions:
Village Marine LTM 145 Plumbing Diagram
Replacement Parts
