MARCH PUMPS TE-5C-MD Mag Drive Pump - 1 Ph - 18 GPM - 115/230 V - Weg Motor
March TE-5C-MD magnetic drive pump handles corrosive chemicals for recirculation, transfer, and cooling. 1-phase 115/230V, 1/5 HP motor, 50/60 Hz operation. Ideal for watermakers.
Reference: 0150-0214-0100
$713.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

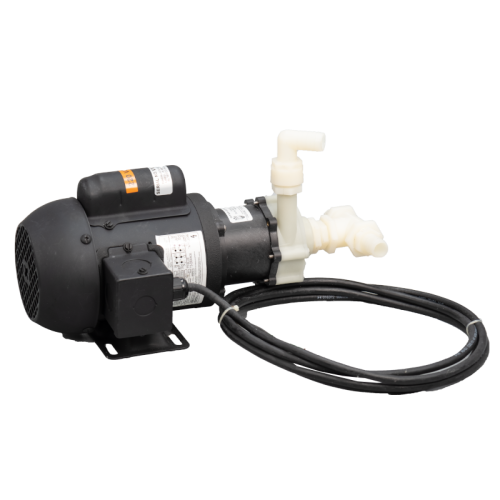

MARCH PUMPS TE-5C-MD Mag-Drive Centrifugal Pump 115/230V
March Pump's industrial TE-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. The motor is a 1 Phase 115/230V, 1/5 Horsepower totally enclosed fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The March TE-5C-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. Applications for the TE-5C-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, refrigerators, small scrubbers, detergent mixers, computer cooling, carbon arc furnace cooling, and marine air conditioners.
OPERATION
Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact March Pump.
LIMITED WARRANTY
March pumps are guaranteed only against defects in workmanship or materials for a period of one year from date of manufacture pumping water. For the complete warranty and to register online go to www.marchpump.com/warranty-registration.
SPECIFICATIONS
- Product #: 0150-0214-0100
- Polypropylene material
- Maximum flow: 18 GPM
- Maximum head: 29'
- Not self priming
- 1" FPT inlet x 1/2" MPT outlet
- 1/5 HP, 115v, 50/60 Hz, 1 phase, 2.1 amps, 3450 RPM motor
- Totally enclosed, fan cooled motor with built in overload protection
- Electrical connection: conduit box
- Maximum internal pressure: 50 psi
- Maximum liquid temperature: 190°F
- Packed Weight (lbs): 22.4
DIMENSIONS
