Parker LTM-500 Watermaker - 21 GPH - 500 GPD - Membrane Included

The Village Marine LTM-500 Watermaker is compact and semi-modular, offering completely flexible installation. With a capacity of 21 GPH (500 GPD) / 79 LPH, this desalinator is ideal for powerboats, sailboats, and small-to-mid-sized commercial vessel applications.

MEMBRANE (33-0238) INCLUDED


Reference: 90-6019
Reg Price: $5,979.00
CPlus Price: $5,769.74
What is Citimarine Plus Membership?
Click here for details
Volts / Ph / Hz / Amps

Shipping Calculator
Freight Shipping on this item*
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator
Parker Racor Village Marine LTM-500 Watermaker - For Sail Boat and Motor Boat Applications

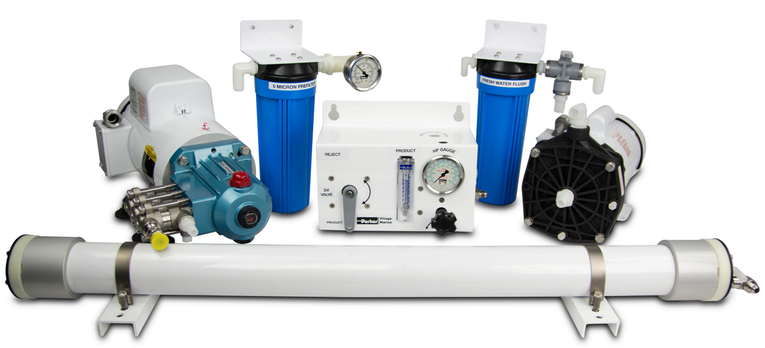

Village Marine LTM-500 Watermaker


The Village Marine LTM-500 Watermaker is a great first mate for fishing, ocean crossings, extended voyages, or blue water cruising. It features a semi-modular and compact frame format that is able to be mounted above or below the water line, creating installation flexibility. (The boost pump and prefilters are supplied as loose items).

The LTM-500 uses the remote membrane rack.
The LTM-500 is able to produce 21 GPH (500 GPD), making this the best desalinator for fresh water independence when dock water supplies are unreliable. An ideal watermaker for power boats, sailboats, and small-to-mid-sized commercial vessel applications.

Technology:
• Electrical control panel Nema 4X with motor starter and pump controls
• Digital monitors

Meters/Monitors:
• Flowmeter to monitor freshwater production
• Digital water quality monitor displays purity of product water produced
• Glycerin filled pressure gauges

Service/Maintenance:
• Manual freshwater flush system (included standard)

Pump:
• Compact stainless steel high-pressure pump is resistant to the corrosive seawater environment
• Magnetic drive low-pressure pump provides up to 10 psi of boost pressure to the filtration system, never requires a seal replacement
• Boost pump and prefilters are supplied as loose items

Materials:
• 316 stainless steel pressure regulator is adjustable to allow operation in brackish or fresh water
• Sediment prefilter at 5 micron rating

Safety:
• Automatic diversion valve diverts water to overboard if quality drops below acceptable standards

Accessories:
• Freshwater flush system (included standard) for manual flushing or (optional) timed automatic flush with adjustable interval and duration for set-and-forget flushing
• Optional Remote with water quality indicator, comes with 50 ft. cable

Specifications:

  • Brand: Village Marine
  • Application: Leisure
  • Configuration: Semi-Modular
  • Product Type: Watermaker
  • Voltz: 110, 220, 230, 230-460
  • Ph: 1, 3
  • Hz: 50, 60, 50-60
  • Amps: 18, 8, 6-4
  • GPH: 21
  • GPD: 500
  • LPH: 79
  • Pump: Aqua Pro® Pump, Titanium high pressure pump, Magnetic drive low pressure pump
  • Reverse Osmosis Membrane: Hi-rejection Aqua Pro® membrane
  • Filters: 5 micron pre-filter
  • Power Options: AC
  • Pressure Adjustment: Automatic
  • Weight: 92 Lbs.

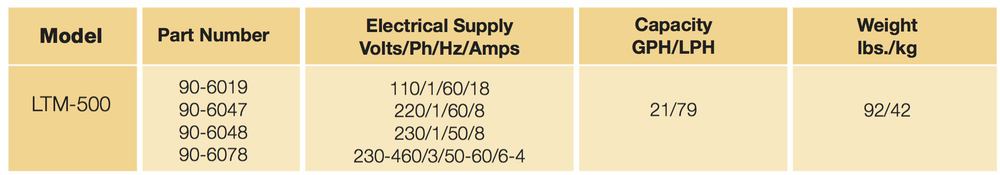

Ltm 500 Specs

Dimensions:

LTM 500-1800 Dimensions

Village Marine LTM 500 Plumbing Diagram

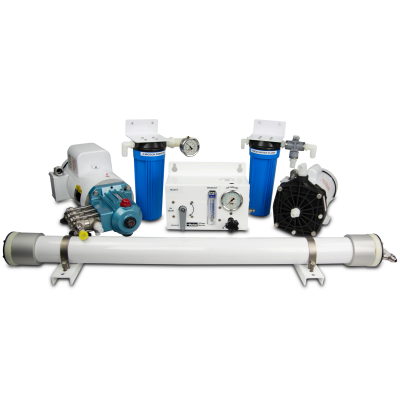

Village Marine LTM-500 watermaker
