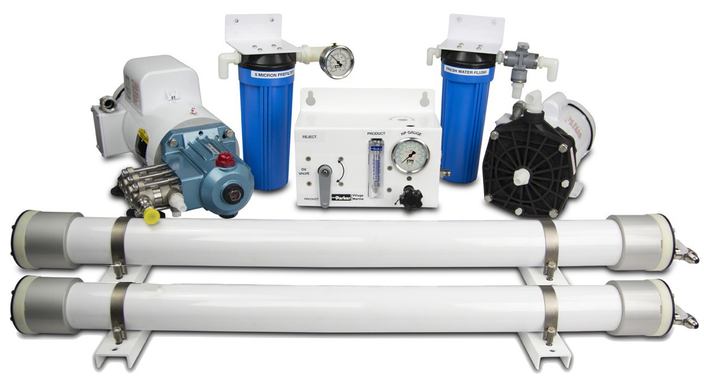

Parker Village Marine LTM-800 Watermaker - 800 GPD / 33 GPH - Membranes Included
The Village Marine LTM-800 Watermaker is compact and semi-modular, offering a completely flexible installation. With a capacity of 33 GPH (800 GPD) / 125 LPH, this desalinator is ideal for powerboats, sailboats, and small-to-mid-sized commercial vessel applications.
2 X (33-0238) MEMBRANES INCLUDED
Reference: 90-6050
In Stock: 1
Regular Price: $8,519.00
CPlus Price: $8,433.81
What is Citimarine Plus Membership? Click here for details
Available for local pickup at our Miami or Fort Lauderdale location
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator
Parker Racor Village Marine LTM-800 800 GPD Watermaker - For Sail Boat and Motor Boat Applications

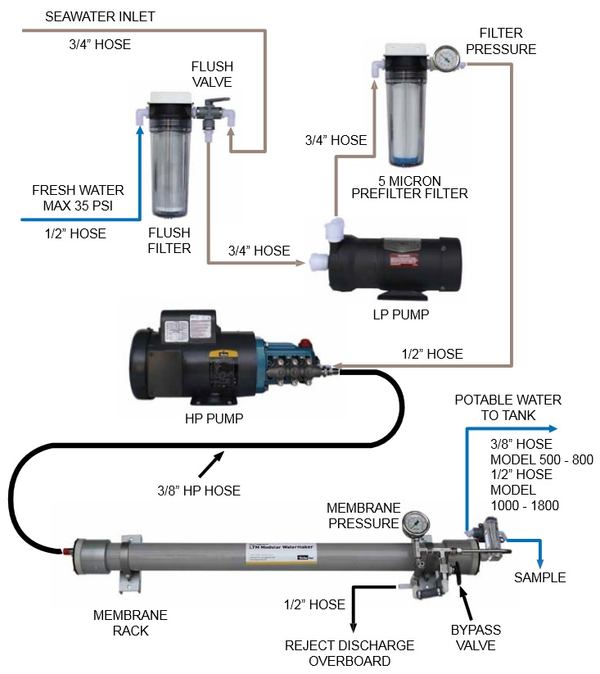

The Village Marine LTM-800 Watermaker is a great first mate for fishing, ocean crossings, extended voyages, or blue water cruising. It features a semi-modular and compact frame format that is able to be mounted above or below the waterline, creating installation flexibility. (The boost pump and prefilters are supplied as loose items). The LTM-800 uses the remote membrane rack.
The LTM-800 is able to produce 33 GPH (800 GPD), making this the best desalinator for freshwater independence when dock water supplies are unreliable. An ideal watermaker for powerboats, sailboats, and small-to-mid-sized commercial vessel applications.
Technology: • Electrical control panel Nema 4X with motor starter and pump controls • Digital monitors
Meters/Monitors: • Flowmeter to monitor freshwater production • Digital water quality monitor displays purity of product water produced • Glycerin filled pressure gauges
Service/Maintenance: • Manual freshwater flush system (included standard)
Pump: • Compact stainless steel high-pressure pump is resistant to the corrosive seawater environment • Magnetic drive low-pressure pump provides up to 10 psi of boost pressure to the filtration system, never requires a seal replacement • Boost pump and prefilters are supplied as loose items
Materials: • 316 stainless steel pressure regulator is adjustable to allow operation in brackish or freshwater • Sediment prefilter at 5-micron rating
Safety: • Automatic diversion valve diverts the water overboard if quality drops below acceptable standards
Accessories: • Freshwater flush system (included standard) for manual flushing or (optional) timed automatic flush with adjustable interval and duration for set-and-forget flushing • Optional Remote with water quality indicator comes with 50 ft. cable

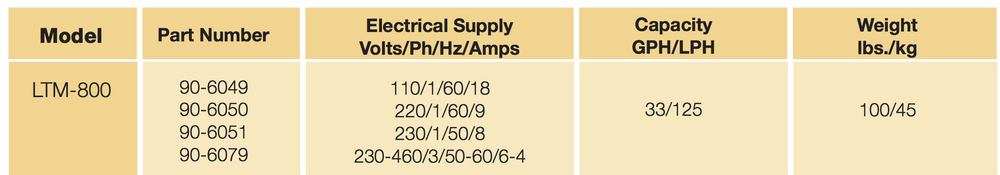

LPH: 125 Pump: Aqua Pro® Pump, Titanium high-pressure pump, Magnetic drive low-pressure pump Reverse Osmosis Membrane: Hi-rejection Aqua Pro® membrane(s) Filters: 5-micron pre-filter Power Options: AC Pressure Adjustment: Automatic Weight: 100 Lbs. Electrical Requirements: See Brochure Under Product Support
MARCH PUMPS MA TE-5C-MD 115/230 V - Mag-Drive Centrifugal Pump, Polypropylene Plastic Pump Head, and Impeller, 115V 50/60Hz Air Cooled Motor, Up To 18 GPM, 1" FPT Inlet, 1/2"MPT Outlet, 3 Foot Power Cord with No Plug. Weg Motor. Ideal for watermakers. March Pumps Part Number: TE -5C-MD WEG 115V
Parker AQUA PRO Seawater RO Membranes - For Village Marine / Parker Racor systems thin film composite RO membranes deliver high salt rejection while maintaining high production rates. Genuine OEM Village Marine reverse osmosis membranes for all Village Marine Tec desalinators. Manufactured by Parker / Racor. 19" and 38" membranes include a 2” extension tip so they will also fit older 21" and 40” pressure vessels. Parker RO Membranes.
Parker Village Marine Tec Pleated Water Filters 5 MIC 2.5" X 9.75" offer a longer filter life, increased flow rates, and are available in a wide arrange of standard and customizable sizes and micron ranges. Microns: 5. Dimension: Diameter: 2.75" (7 cm) . Length: 2.75" (7 cm) .
MFG#: 0801060157 / 33-0117
Replaces filters: 252404291 , 0801060157
High-Pressure Aqua Pro Pump Oil for Parker / Racor - For Village Marine Tec. and other quality watermakers. This specially formulated synthetic blend pump oil extends the life of your high-pressure pump. Follow the instructions in your desalinator's user manual for proper use. 1.0 US Quart [0.946 Liter] Part Number: 85-0050
Parker Village Marine's Exclusive Single-Use Cleaning Filter Cartridges eliminate any hassle, or mess, and takes the guess-work out of mixing powder chemicals. Includes 2 chemical #3 cartridge: Chemical #3 - Food grade preservative for long term preservation of membranes. These EXCLUSIVE Village Marine chemical cartridges are capable of being used in any filter housing that takes a standard 10 sq. ft. filter cartridge: 2.5" (70mm) x 9 13/16" (250mm).
MFG#: 85-0103
Village Marine Tec Membrane Cleaning Kit, 85-0102. Includes chemicals #1 & #2 for removing scale and organic buildup in your membranes. Follow the instructions in your desalinator's user manual for proper use. Kit includes one (1) scale cartridge and one (1) organics cartridge.
RACOR VILLAGE MARINE TEC Salinity Water Quality Monitor can be fitted to models Sea Quencher, Little Wonder or LTM watermakers or to any make or model needing addition or replacement of the salinity control. The compact assembly provides water quality reading and an automatic diversion valve to ensure that only freshwater flows to the potable water storage tank. 12V DC (90-0081), 110V AC (90-0115), 220V AC (90-0116)
