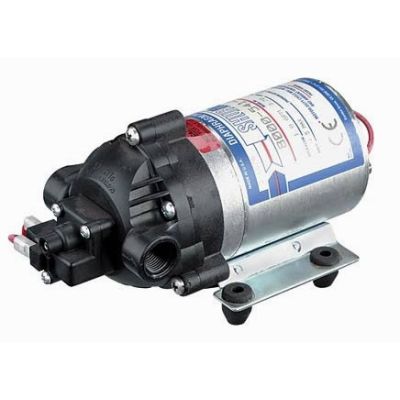

SHURFLO 8030-863-239 Diaphragm Pump 3 Chamber 1.40 GPM 115VAC
SHURFLO 8030-863-239 Diaphragm Pump 3 Chamber 1.40 GPM 115VAC - Intermittent Duty, 150 PSI Demand Switch (adjustable 140-160 PSI), Viton Valves, Santoprene Diaphragm, Nylon Housing, 3/8" NPT Female Ports, UL/CSA Recognized, Typical Application: Agricultural Spraying.
Reference: SF 8030-863-239
$204.76
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
SHURFLO 8030-863-239 Diaphragm Pump 3 Chamber 1.40 GPM 115VAC
SPECIFICATIONS:
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (2-Way Op.) Prevents Reverse Flow & 6 Ft. Head Forward Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-223-00, Thermally Protected
VOLTAGE: 115 VAC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 140-160 PSI)
Factory Set @ 150 PSI, Turn On 115 PSI
LIQUID TEMPERATURE: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 6 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Nylon
VALVES- Viton
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 5.94 Lbs (2.7 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
APPROVALS: UL & CSA Recognized Component
TYPICAL APPLICATIONS: Agricultural Spraying
SPECIFICATIONS:
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (2-Way Op.) Prevents Reverse Flow & 6 Ft. Head Forward Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-223-00, Thermally Protected
VOLTAGE: 115 VAC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 140-160 PSI)
Factory Set @ 150 PSI, Turn On 115 PSI
LIQUID TEMPERATURE: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 6 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Nylon
VALVES- Viton
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 5.94 Lbs (2.7 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
APPROVALS: UL & CSA Recognized Component
TYPICAL APPLICATIONS: Agricultural Spraying
