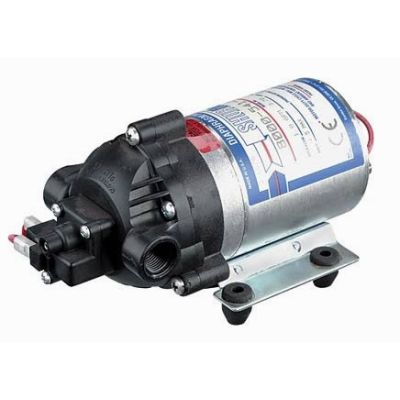

SHURFLO 8000-033-236 Diaphragm Pump 3 Chamber 1.0 GPM 115VAC
SHURFLO 8000-033-236 Diaphragm Pump 3 Chambers 1.0 GPM 115VAC - Intermittent Duty, 60 PSI Demand Switch (Adjustable 40-60 PSI), Viton Valves, Viton Diaphragm, Polypropylene Housing, 3/8" NPT Female Ports , UL/CSA recognition, Typical Application: Agricultural Spraying.
SHURFLO 8000-033-236 Diaphragm Pump 3 Chamber 1.0 GPM 115VAC
SHURFLO 8000-033-236 Diaphragm Pump 3 Chambers 1.0 GPM 115VAC - Intermittent Duty, 60 PSI Demand Switch (Adjustable 40-60 PSI), Viton Valves, Viton Diaphragm, Polypropylene Housing, 3/8" NPT Female Ports , UL/CSA recognition, Typical Application: Agricultural Spraying.
ESPECIFICACIONES:
PUMP DESIGN: Positive displacement 3-chamber diaphragm pump
CHECK VALVE: (2-way operation) Prevents reverse flow and 6 feet (1.8m). Forward head flow
CAM: 2.5 degrees
MOTOR: permanent magnet, P/N 11-150-00, with thermal protection
VOLTAGE: 115 VAC Nominal
PRESSURE SWITCH: Adjustable Shutoff (Range 40-60 PSI)
Factory set at 60 PSI, turn on 45 PSI 5 PSI
LIQUID TEMPERATURE: 170 degrees Fahrenheit (77 degrees Celsius) Max.
PRIME: Self-priming up to 8ft. Vertical,
max. Inlet pressure 30 PSI (2.1 bar)
PORTS: 3/8"-18 NPT female
CONSTRUCTION MATERIAL:
PLASTICS- Polypropylene
VALVES- Viton
DIAPHRAGM- Viton
FASTENERS - Zinc plated steel
NET WEIGHT: 3.9 Lbs (1.77 Kg)
DUTY CYCLE: Intermittent (See temperature rise graph)
APPROVALS: UL/CSA Recognized Component
TYPICAL APPLICATIONS: Agricultural Spraying
