SHURFLO Diaphragm Pump Pro Blaster II Ultimate 5.0 24V

SHURFLO Diaphragm Pump Pro Blaster II Ultimate 5.0 24V

Customer ratings and reviews

SHURFLO 4258-163-E09- Diaphragm Pump 4 Chamber, Pro Blaster II Ultimate 5.0, Up To 5.0GPM Open Flow, 60PSI Adjust. Demand Switch, 1/2” x 14 NPSM Male Threaded Ports, Includes Two 3/4” Hose Barb Straight Swivel Fittings a Male Garden Hose Fitting a Pistol Grip Sprayer & a 50 Mesh Strainer, 6.15 Amps, Ignition Protected, CE Rated, Fresh or Salt Water Washdown Pump. *Replaces SF 5901-3212.

Reference: SF 4258-163-E09

$323.17

Buy Now!

Add to cart

Quantity:

Financing Available with Affirm

Financing Available with Paytomorrow

: Estimated monthly payment with 24 month financing. *Based on credit approval. More info

Pay over time with monthly payments.

APR, loan limit and payment periods available will be based on credit score
APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

Run Pre-Approval Here
Purchase with PayTomorrow* *includes preapproval process

By buying this product you can collect up to 32 Citimarine points. Your cart will total 32 points that will be converted into a voucher of $3.20 towards your next purchase! Must be logged in to collect points.

More info

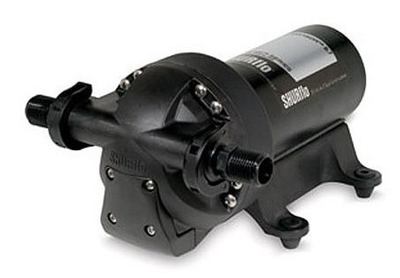

SHURFLO 4258-163-E09 Diaphragm Pump Pro Blaster II Ultimate 5.0 24V (Replacemente for SF 5901-3212).

SHURFLO’S PRO BLASTER™ II wash down pump design was created with unique over-molded single piece diaphragm, assuring long life and top performance in all deck wash down plumbing systems. Designed as the next legendary pump to exceed the expectations of our customers, the PRO BLASTER™ II pumps are designed for the toughest marine washdown applications. SHURFLO’S quality reputation has been built on the reliability and dependability of every pump we build. The PRO BLASTER™ II wash down automatic demand pumps are quiet, thermally protected and can run dry without damage.

FEATURES:

4 independent chambers
Co-Molded diaphragm
Adjustable pressure switch
Self-priming up to 6 feet
Sealed switch
Sealed motor
Corrosion resistance electro-coated motor
Thermally protected
Ignition protected, CE

APPLICATION:

Marine fresh or salt water wash-down installation. This pump may be used for general water transfer.

PUMP DESIGN:

Type: 4 Chamber Diaphragm pump
Ports: ½”-14 NPSM-Male
Liquid: 130°F [54°C] Max
Dry-Prime: 6 feet [1.82 M]
Run Dry: Yes
Inlet Pressure: 30 PSI Max. [2.06 Bar]

ELECTRICAL:

Motor: 24V DC Permanent Magnet, Intermittent Duty.
Protection: Thermal Overload, Automatic Restart
Leads: 14 AWG, 14 ¾” [37 cm] Red +, 15” [38 cm] Black
Fuse: 10 Amp Recommended
Control: Shut-Off 60 PSI [4.1 Bar] ± 2 PSI [0.13 Bar]
Re-start 45 PSI [3.1 Bar] ± 2 PSI [0.13 Bar]

SHIPPING INFORMATION:

Approx. Net Weight: 7.9 Pounds [3.5 Kg] ea.
Carton Qty.: 6
Approx. Carton Weight: 50 Lbs. [22.6 Kg]
Approx. Carton Size: 24”L X 18”W X 6”H [61cm x 46cm x 15cm]
Retail (individual) box: 12”L X 6”W X 6”H [30cm x 15cm x 15cm]

4258-163-E09
