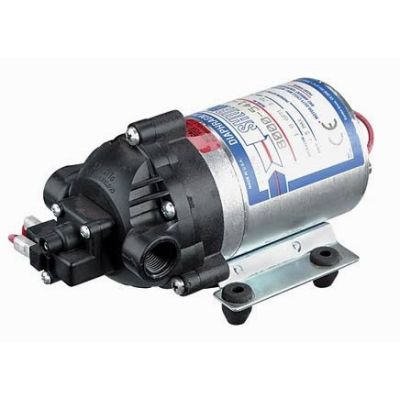

SHURFLO 8090-212-246 Diaphragm Pump 3 Chamber 1.22 GPM 230VAC

SHURFLO 8090-212-246 Diaphragm Pump 3 Chamber 1.22 GPM 230VAC - Intermittent Duty, 60 PSI Demand Switch (adjustable 40-60 PSI), EPDM Valves, Santoprene Diaphragm, Polypropylene Housing, 3/8" NPT Female Ports, VDE Approved, Typical Application: Soil Extraction, Carpet Cleaning.
Reference: SF 8090-212-246
$199.99

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
SHURFLO 8090-212-246 Diaphragm Pump 3 Chamber 1.22 GPM 230VAC

SPECIFICATIONS:

PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (2-Way Operation) Prevents Reverse Flow & 6 Ft. Head Forward Flow
CAM: 2.5 Degree
MOTOR: Permanent Magnet, P/N 11-160-00, Thermally Protected
VOLTAGE: 230 VAC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 40-60 PSI)
Factory Set @ 60 PSI, Turn On 45 PSI 5 PSI
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 7 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Polypropylene
VALVES- EPDM
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 3.85 Lbs (1.75 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
TYPICAL APPLICATIONS: Soil Extraction
APPROVALS: VDE Approved

SHURFLO 8090-212-246
