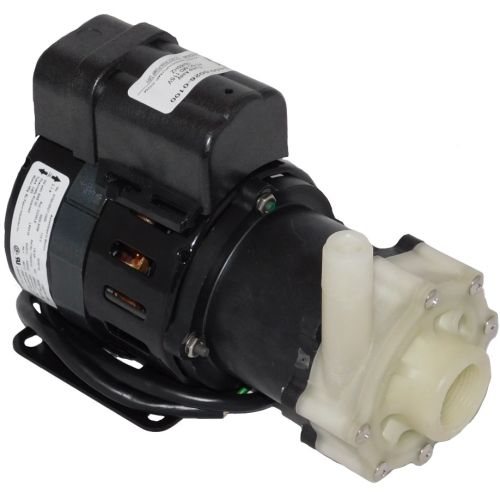

MARCH PUMPS Mag-Drive Centrifugal Pump AC-5C-MD 115V (1,020 GPH)

MARCH PUMPS Mag-Drive Centrifugal Pump AC-5C-MD 115V (1,020 GPH)

MARCH PUMPS Mag-Drive Centrifugal Pump AC-5C-MD 115V (1,020 GPH)

Customer ratings and reviews

MARCH PUMPS MA AC-5C-MD 115V - Mag-Drive Centrifugal Pump, Polypropylene Plastic Pump Head and Impeller, 115V 50/60Hz Air Cooled Motor, Up To 17GPM, 1"FPT Inlet, 1/2"MPT Outlet, 3 Foot Power Cord with No Plug.

March Pumps Part Number: AC-5C-MD 115V
Dometic Part Number: 225500065 (Click Here To view)
Free US Shipping!

MA AC-5C-MD 115V

By buying this product you can collect up to Your cart will total 28 points that will be converted into a of $2.80 towards your next purchase! Must be to collect points.

More info

MARCH PUMPS AC-5C-MD Mag-Drive Centrifugal Pump 115V
Replaces PMA1000


March Pump's industrial AC-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 1 feet, and its maximum head is 27 Feet (or around 11PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Ceramic, and Ceramic Magnet. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options).

OPERATION

Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact March Pump.

ELECTRICAL

Model is115 Volt and have a 3 ft (0.9 m) Cord. Models have U.L. listed motors, which are rated for continuous duty.

LIMITED WARRANTY

March pumps are guaranteed only against defects in workmanship or materials for a period of one year from date of manufacture pumping water. For the complete warranty and to register online go to www.marchpump.com/warranty-registration.

SPECIFICATIONS

Inlet - Outlet: 1” FPT - 1/2” MPT
Max Internal Pressure: 50 psi (344 kPa)
Max Liquid Temperature: 190 °F (87 °C)
Dimensions (inches): 6.19 x 4.52 x 9.27
Packed Weight (lbs): 8.55

AC-5C-MD Curve

DIMENSIONS

AC-5C-MD Dimensions


MARCH PUMPS MA AC-5C-MD 115V
