7.5EKD - 7.5kW Generator, Gas Fueled, 60Hz, 120V, 1-Phase, Heat Exchanged

7.5EKD - 7.5kW Generator, Gas Fueled, 60Hz, 120V, 1-Phase, Heat Exchanged

7.5EKD - 7.5kW Generator, Gas Fueled, 60Hz, 120V, 1-Phase, Heat Exchanged

Customer ratings and reviews

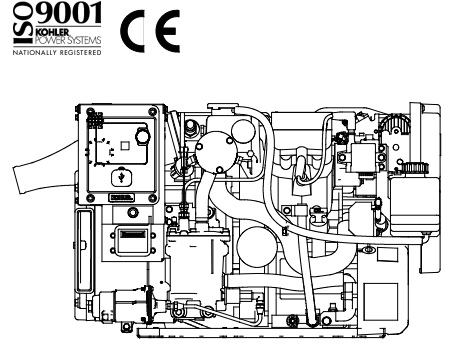

KOHLER 7.5 kW Marine Generator 7.5EKD. 60 Hz, Single Phase, 120V, 12VDC, Heat Exchanged - Gas fueled, two cylinder, 4 cycle. Integral heat exchanger, CARB/EPA emission compliant (Low CO), One-side serviceability of fuel filter, cooling systems, and lubrication system. Kohler MFG#: 7.5EKD

*Contact us for best price available! 1-800-766-5256, info@citimarine.com or chat with us below!

By buying this product you can collect up to 1029 Citimarine points. Your cart will total 1029 points that will be converted into a voucher of $102.90 towards your next purchase! Must be to collect points.

More info

KOHLER 7.5 kW Marine Generator 7.5EKD - Features:

Integral heat exchanger

CARB/EPA emission compliant (Low CO)

One-side serviceability of fuel filter, cooling systems, and lubrication system

Sequential-port throttle-body fuel injected Attached overflow bottle

Remote start 12-pin connector.

Voltage regulation of ±1.5%.

Rotor and stator are vacuum impregnated and coated with high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas.

Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.

Directly connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket (or end bearing tolerance ring) to prevent shaft misalignment and extend bearing life.

Specifications

.

Hertz:60 Hz
Generator with sound shield
Width:500 mm (19.69 in.)
Height:467 mm (18.39 in.)
Length:773 mm (30.43 in.)
Weight, wet:132 kg (290 lbs)
Generator without sound shield
Width:466 mm (18.35 in.)
Height:445 mm (17.51 in.)
Length:691 mm (27.2 in.)
Weight, dry:118 kg (260 lbs)
Weight, wet:120 kg (265 lbs)

KOHLER 7.5 kW Marine Generator 7.5EKD
