16EKOZD - 16kW Generator, Diesel Fueled, 60Hz, 120V, 1- or 3-Phase, Heat Exchanged

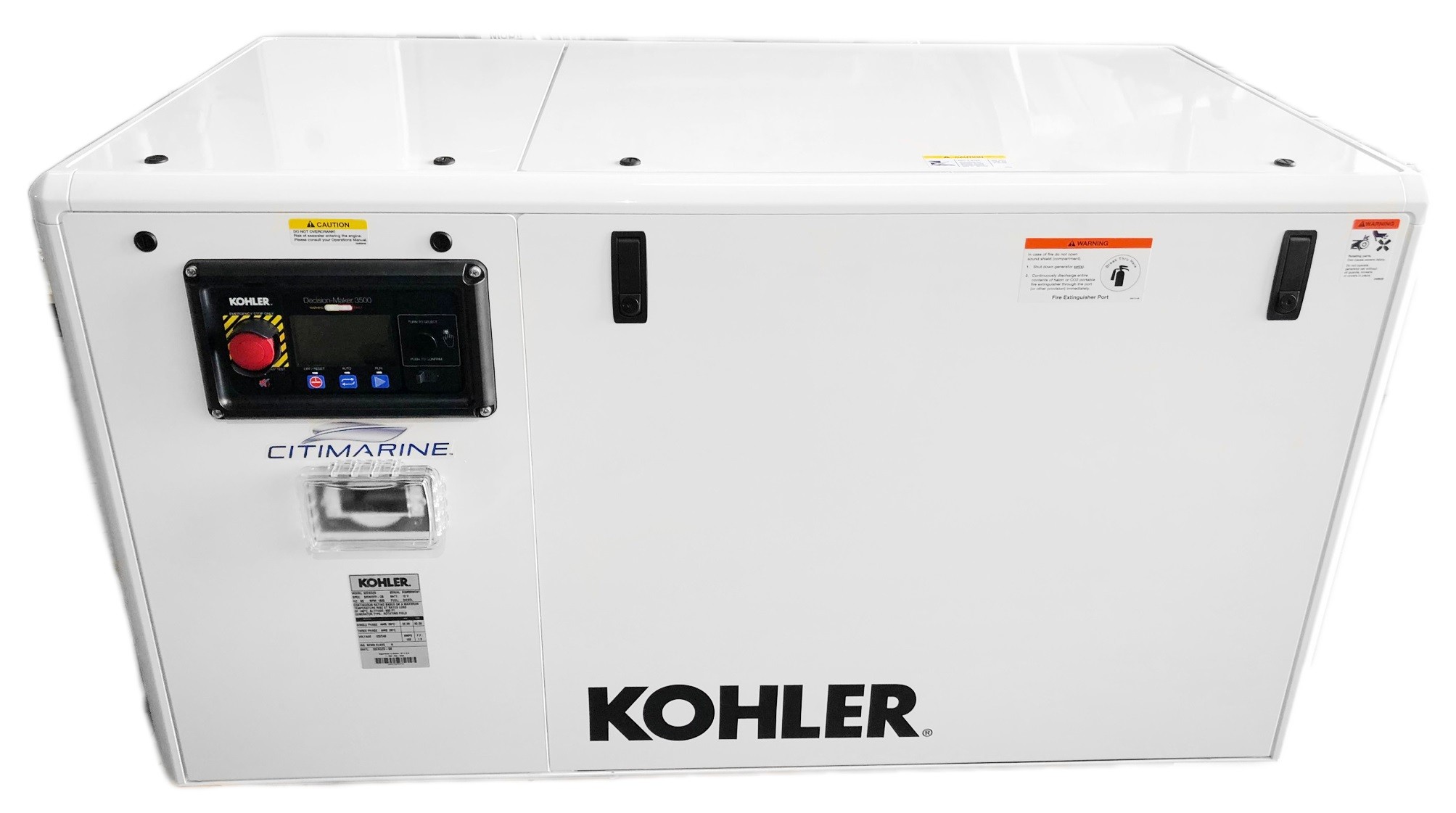

KOHLER 16EKOZD - 16kW Marine Generator, 60 Hz, 120V, 12VDC, Diesel fueled, EPA Certified, Three cylinder, Four cycle, Closed cooling system, Heat exchanger, Electric fuel lift pump, Lifting eye, Class H insulation, Multivoltage adjustability, Voltage regulation of ± 1.0%, Radio suppression. Kohler
Part number: 16EKOZD
**Contact Us For Pricing On Our Marine Generators! 1-800-766-5256, sales@citimarine.com or chat with us below!
Features of the KOHLER 16EKOZD - 16kW Marine Generator
Marine Generator, 60 Hz, 120V, 12VDC, Diesel fueled, EPA Certified, Three cylinder, Four cycle, Closed cooling system, Heat exchanger, Electric fuel lift pump, Lifting eye, Class H insulation, Multivoltage adjustability, Voltage regulation of ± 1.0%, Radio suppression.
Engine features:
- Heavy-duty construction
- Certified by the Environmental Protection Agency (EPA) to conform to Tier III emissions regulations
- Diesel fueled
- Three cylinders
- Four cycle
- Electric fuel lift pump
- Lifting eyes
Generator features:
- Remote start 12-pin connector
- Class H insulation
- Single phase and three phase models available
- Voltage regulation of ±1.0%
- Radio suppression
- Outstanding motor-starting capability
- Directly connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket (or end bearing tolerance ring) to prevent shaft misalignment and extend bearing life.
Specifications
| Hertz | 60 |
| Voltaje | 120/240V |
| Amps | 63 |
| Phase | 1 |
| Engine type | 4 Cycle Naturally Aspirated |
| Cylinders | 3 |
| Combustion System | Direct Injection |
| Rated rpm | 1800 at 60 HZ - 1500 at 50 HZ |
| Battery Voltage | 12V - 24V (Optional) |
| Minimum recommended battery size | 650 CCA |
| Fuel Consumption at 100% | 4.57 Lph (1.21gph) |
| Fuel Consumption at 75% | 3.55 Lph (0.94gph) |
| Fuel Consumption at 50% | 2.50 Lph (0.66gph) |
| Fuel Consumption at 25% | 1.57 Lph (0.42gph) |
| Generator with sound shield | |
| Width: | 601 mm (23.64 in.) |
| Height: | 711 mm (27.99 in.) |
| Length: | 1011 mm (39.80 in.) |
| Weight, wet: | 395 kg (870 lbs) |
| Generator without sound shield | |
| Width: | 563 mm (22.15 in.) |
| Height: | 682 mm (26.86 in.) |
| Length: | 1003 mm (39.49 in.) |
| Weight, dry: | 363 kg (800 lbs) |
| Weight, wet: | 376 kg (830 lbs) |
