Cummins Onan MDKBH 5 kW Marine Diesel Generator, 60 Hz

Cummins Onan MDKBH 5 kW Marine Diesel Generator, 60 Hz

By buying this product you can collect up to Your cart will total 939 points that will be converted into a of $93.90 towards your next purchase! Must be to collect points.

Cummins Onan MDKBH 5 kW Marine Diesel Generator, 60 Hz

Customer ratings and reviews

CUMMINS ONAN 5 kW Marine Generator (MDKBH), 60 Hz, 1 phase, 120V, 2900 RPM. 2-cylinder, 4-stroke Kubota diesel. Digital Display provides user-friendly diagnostics, optimized mounting greatly reduces vibration. EPA & Lloyd's certified. Sound shield included. 5 year limited warranty.*

MFG#: 5MDKBH

**Contact Us For Pricing On 5 kW Marine Diesel Generator! 1-800-766-5256, [email protected] or chat with us below!

Financing Available with Affirm

Financing Available with Paytomorrow
Estimated monthly payment with 24 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

CUMMINS ONAN 5 kW Marine Generator (MDKBH), 60 Hz - 5 kW Marine Diesel Generator

The Cummins Onan 5kW Marine Generator MDKBH comes with a digital display that provides user-friendly diagnostics including extensive engine and alternator information and more. The optimized mounting system greatly reduces vibration. Electronic frequency control - a must for digital appliances and computers requiring quality power. Cummins Onan marine generator sets are emissions certified to U.S. Environmental Protection Agency (EPA) emission standards

More than 90 years of marine experience stand behind every Cummins Onan Marine generator set, as well as the largest worldwide certified Distributor/Dealer support network in the industry.

Features of The Cummins Onan 5kW Marine Generator

-2-cylinder, 4-stroke, water-cooled Kubota diesel with Bosch MD fuel pump
-Ignition protected and is therefore permitted under USCG regulation 33CRF183 to be   located in a gasoline fuel environment
-Available with SAE J-1939 CAN data link for monitoring generator set status and   diagnostics for engine and alternator
-Certified by Lloyd's Register for marine, offshore and industrial applications

5 kW Marine Diesel Generator
Electrical power for the R-31S from Ranger Tugs is provided by a
5 kW MDKBH Onan marine generator set

Specifications

Engine Model

2-cylinder, 4-stroke Kubota diesel

Alternator

Cummins Onan model

Product Dimensions and Weight

Overall Length

mm (in)

662 (26)

Overall Width

mm (in)

511 (20)

Overall Height

mm (in)

524 (21)

Weight

kg (lb)

166 (365)

Ratings

kWe

kVa

Hz

RPM

Phase

Voltage

Amps

Emissions

5

5

60

2900

1

120

120 | 240

41.7

41.7 | 20.8

EPA

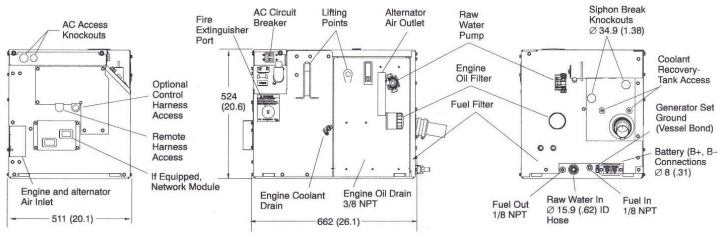

MDKBH 5 kW Marine Generator Dimensions


*The Cummins Onan express, written limited warranty covers virtually everything except routine maintenance for the first two years you own your marine generator set, and covers parts and labor on major power train and generator set parts during the third through fifth years.
