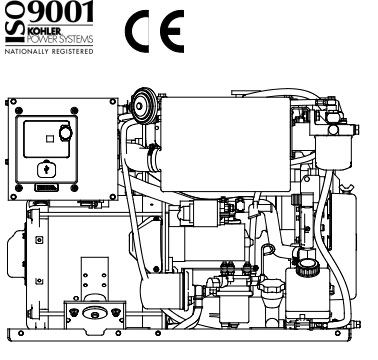

Kohler 6EKOD - 6kW Generator, Diesel Fueled, 60Hz, 120V, 1-Phase, Heat Exchanged

KOHLER 6EKOD - Kohler 6kW Marine Generator, 60 Hz, Single Phase, 120V, 12VDC, Heat Exchanged - Diesel fueled, 3 cylinder, 4 cycle. Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards, closed cooling system, heat exchanger, oil drain valve. Kohler

Part number:
6EKOD

**Contact Us For Pricing On Our Marine Generators! 1-800-766-5256, sales@citimarine.com or chat with us below!

Reference: 6EKOD
Sound Shield
Ignition Protected

Shipping Calculator
Freight Shipping on this item*
Freight Shipping on this item*
Flat rate freight shipping in the US:

Commercial Address: $395.00 Residential Address: $395.00
Shipping Calculator

Features of the KOHLER 6EKOD - Kohler 6kW Marine Generator

Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards.

  • Closed cooling system
  • Heat exchanger
  • Oil drain valve
  • Remote start 12-pin connector
  • Voltage regulation of ±1.0%
  • Rotor and stator are coated with a high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas.
  • Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.
  • Direct connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.

Specifications

Hertz 60 Hz
Voltage 120/240V
Amps 50.0 / 25.0 A
Phase 1 Ph
Engine Type 4 Cycle Naturally Aspirated
Cylinders 3
Combustion System Indirect Injection
Rated rpm 1800 at 60 HZ - 1500 at 50 HZ
Battery Voltage 12V - 24V (Optional)
Minimum recommended battery size 650 CCA
Fuel Consumption at 100% 2.3 LPH (0.6 GPH)
Fuel Consumption at 75% 1.9 LPH (0.5 GPH)
Fuel Consumption at 50% 1.5 LPH (0.4 GPH)
Fuel Consumption at 25% 1.1 LPH (0.3 GPH)
Generator with sound shield
Width: 528 mm (20.79 in.)
Height: 559 mm (22.01 in.)
Length: 780 mm (30.71 in.)
Weight, wet: 222 kg (490 lbs)
Generator without sound shield
Width: 448 mm (17.65 in.)
Height: 536 mm (21.12 in.)
Length: 743 mm (29.26 in.)
Weight, dry: 181 kg (398 lbs)
Weight, wet: 185 kg (407 lbs)
