24EKOZD - 24kW Generator, Diesel Fueled, 60Hz, 120V, 1- or 3-Phase, Heat Exchanged

24EKOZD - 24kW Generator, Diesel Fueled, 60Hz, 120V, 1- or 3-Phase, Heat Exchanged

By buying this product you can collect up to Your cart will total 2313 points that will be converted into a of $231.30 towards your next purchase! Must be to collect points.

24EKOZD - 24kW Generator, Diesel Fueled, 60Hz, 120V, 1- or 3-Phase, Heat Exchanged

Customer ratings and reviews

Rate / write a comment

KOHLER 24EKOZD - 24kW Marine Generator, 60 Hz, 120V, 12VDC, Diesel fueled, EPA Certified, Four cylinder, Four cycle, Closed cooling system, Heat exchanger, Electric fuel lift pump, Lifting eye, Class H insulation, Multivoltage adjustability, Voltage regulation of ± 1.0%, Radio suppression. Kohler

Part number: 24EKOZD

**Contact Us For Pricing On Our Marine Generators! 1-800-766-5256, sales@citimarine.com or chat with us below!

Financing Available with Affirm

More info

Features of the KOHLER 24EKOZD - 24kW Marine Generator

  • Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards.
  • Closed cooling system
  • Heat exchanger
  • Oil drain valve
  • Voltage regulation of ±1.0%
  • Windings are vacuum impregnated with epoxy varnish for dependability and long life. Varnish helps prevent corrosion in high-humidity areas.
  • Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.
  • Direct connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.

Specifications

Hertz60 Hz
Voltaje120/240V
Amps100
Phase1 Ph
Engine Type4 Cycle Naturally Aspirated
Cylinders4
Combustion SystemDirect injection
Rated rpm1800 at 60 HZ - 1500 at 50 HZ
Battery Voltage12V - 24V (Optional)
Minimum recommended battery size650 CCA @ 0_F
Fuel Consumption at 100%6.7 LPH (2.85GPH)
Fuel Consumption at 75%5.2 LPH (4.44 GPH)
Fuel Consumption at 50%3.7 LPH (3.09 GPH)
Fuel Consumption at 25%2.3 LPH (1.78 GPH)

Generator with sound shield
Width:601 mm (23.64 in.)
Height:711 mm (27.99 in.)
Length:1144 mm (45.05 in.)
Weight, wet:490 kg (1080 lbs)
Generator without sound shield
Width:563 mm (22.15 in.)
Height:682 mm (26.86 in.)
Length:1138 mm (44.81 in.)
Weight, dry:431 kg (950 lbs)
Weight, wet:449 kg (990 lbs)

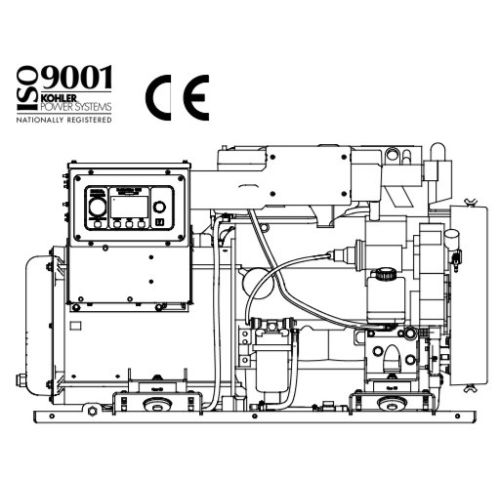

Kohler 24EKOZD Marine Generator
