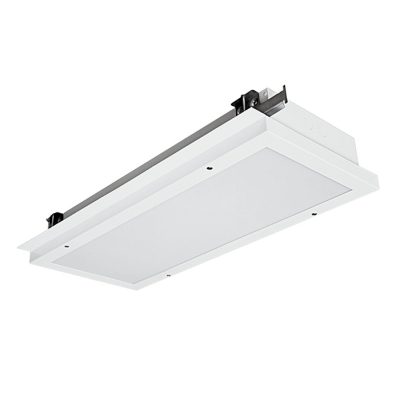

Glamox TL11 LED
For recessed installation in solid ceilings where IP44-rating is required (DP and OP variants). According to maritime requirements. Robust steel housing and steel frame fits to housing with screws. Po
Reference: GLX-TL11-LED
Glamox / Marine lighting
Glamox TL11 LED
For recessed installation in solid ceilings where IP44-rating is required (DP and OP variants). According to maritime requirements. Robust steel housing and steel frame fits to housing with screws. Powder coated white RAL9016. Double prismatic (DP) or Opalic (OP) plastic sheet in steel frame (IP44)
For recessed installation in solid ceilings where IP44-rating is required (DP and OP variants). According to maritime requirements. Robust steel housing and steel frame fits to housing with screws. Powder coated white RAL9016. Double prismatic (DP) or Opalic (OP) plastic sheet in steel frame (IP44) or White grid (WG) plastic in frame (IP20). Suspension brackets (MNT-S) are included for TL11-R222; for TL11-R250 they h
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Application | For recessed installation in solid ceilings, where IP44-rating is required (DP and OP variants). |
| Design | According to maritime requirements. |
| Housing | IP44 Steel housing and steel frame that fits to housing with screws. Powder coated white RAL9016. |
| Diffuser | Double prismatic (DP) or Opalic (OP) plastic sheet in steel frame (IP44). |
| Electrical specification | With electronic driver HF, with analogue dimming HFDa 2 - 10 V or with emergency HF-EB. External battery box to be ordered separately. DALI on request. |
| Light Source | LED 830, 840 or 850 on request |
| Mounting | TL11-R222: To be installed in ceiling cut out with adjustable suspension brackets. Suspension brackets is included. TL11-R250: To be installed in ceiling cut out with adjustable suspension brackets. Suspension brackets t |
| Cable entry | Two holes Ø 20,5 mm with rubber grommet on top and two knock outs Ø 20,5 mm in each end. |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
