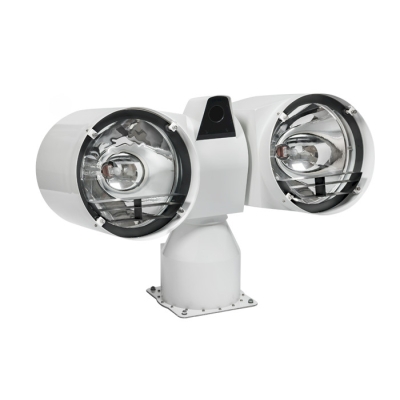

Glamox CL38IR Searchlight with Integrated Thermal Camera
The CL38 HMI searchlight with an integrated uncooled LWIR thermal camera, for long-range night navigation, search and security work.
Reference: CL38IR
Glamox — Luminell
Glamox CL38IR Searchlight with Integrated Thermal Camera
The CL38 HMI searchlight with an integrated uncooled LWIR thermal camera, for long-range night navigation, search and security work.
640 × 512 thermal · 60 Hz230 V AC · IP66 · CE / EMC
The CL38IR is the thermal-equipped version of Luminell’s most powerful HMI searchlight. It pairs the CL38’s long reach with a 640 × 512 uncooled thermal imager, so a target picked up thermally can be illuminated from the same head without re-aiming a separate light.
Supplied by Citimarine Store. Luminell marine equipment is specified to survive continuous salt-air exposure, vibration and washdown.
Specifications
| Thermal camera | Uncooled LWIR |
| Thermal resolution | 640 × 512 |
| Field of view | 24° |
| Digital zoom | 2× and 4× |
| Refresh rate | 60 Hz |
| Supply voltage | 230 V AC |
| Ingress protection | IP66 |
| Operating temperature | −40 °C to +55 °C |
| Approvals | CE, EMC certified |
| Brand | Luminell |
Price on request This unit is quoted to specification — voltage, mounting, housing finish and control options all affect the part number and lead time. Tell us your vessel and application and we will come back with a quote. Call 1-800-766-5256 or use the quote request on this page. |
