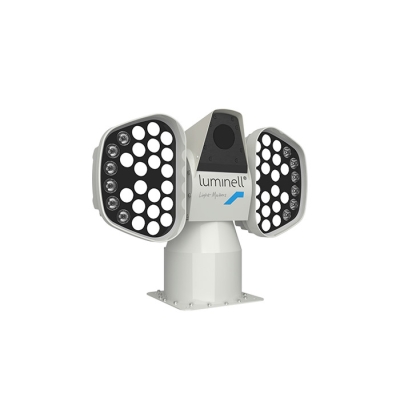

Glamox SL2IR LED Searchlight with Integrated Thermal Camera
Compact dual-head LED searchlight with an integrated uncooled LWIR thermal camera for night navigation, search and security work.
Reference: SL2IR
Glamox — Luminell
Glamox SL2IR LED Searchlight with Integrated Thermal Camera
Compact dual-head LED searchlight with an integrated uncooled LWIR thermal camera for night navigation, search and security work.
24 V DC / 0–230 V ACIP66 · −40 to +55 °C · Luminell 3G control
The SL2IR pairs the SL2 LED searchlight with a built-in thermal imaging camera, so the operator can sweep visually and thermally from the same unit. The heated front window keeps the optics clear in spray and freezing conditions, and the head moves without end stops for full sea-area coverage.
Supplied by Citimarine Store as an authorised marine lighting distributor. Glamox — Luminell marine equipment is specified to survive continuous salt-air exposure, vibration and washdown.
Specifications
| Light source | LED, dimmable with adjustable beam focus |
| Thermal camera | Uncooled LWIR, 640 × 512 resolution, 60 Hz |
| Field of view | 24° with 2× and 4× zoom |
| Supply voltage | 24 V DC or 0–230 V AC |
| Ingress protection | IP66 |
| Operating temperature | −40 °C to +55 °C |
| Housing | Robust marine housing with heated front window |
| Control system | Luminell 3G — interoperable with SL2, CL25, CL35 and CL38 |
| Brand | Glamox — Luminell |
Price on request This unit is quoted to specification — voltage, mounting, housing finish and control options all affect the part number and lead time. Tell us your vessel and application and we will come back with a quote. Call 1-800-766-5256 or use the quote request on this page. |
