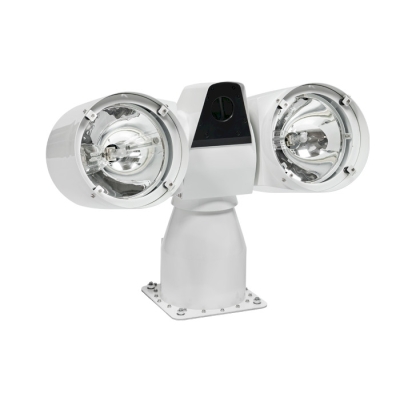

Glamox CL25IR Searchlight with Integrated Thermal Camera
Compact, rugged searchlight combining HMI light output with an integrated uncooled LWIR thermal camera for night navigation and surveillance.
Reference: CL25IR
Glamox — Luminell
Glamox CL25IR Searchlight with Integrated Thermal Camera
Compact, rugged searchlight combining HMI light output with an integrated uncooled LWIR thermal camera for night navigation and surveillance.
640 × 512 thermal · 60 Hz230 V AC · IP66 · −40 to +55 °C
The CL25IR takes the compact CL25 platform and adds a thermal imager, so one unit covers both visual searching and thermal detection. The camera window is heated to stay clear in spray and freezing spray, and the same Luminell control system runs it alongside other CL and SL heads on the bridge.
Supplied by Citimarine Store. Luminell marine equipment is specified to survive continuous salt-air exposure, vibration and washdown.
Specifications
| Thermal camera | Uncooled LWIR with heated front window |
| Thermal resolution | 640 × 512 |
| Field of view | 24° |
| Digital zoom | 2× and 4× |
| Frame rate | 60 Hz |
| Supply voltage | 230 V AC |
| Ingress protection | IP66 |
| Operating temperature | −40 °C to +55 °C |
| Brand | Luminell |
Price on request This unit is quoted to specification — voltage, mounting, housing finish and control options all affect the part number and lead time. Tell us your vessel and application and we will come back with a quote. Call 1-800-766-5256 or use the quote request on this page. |
