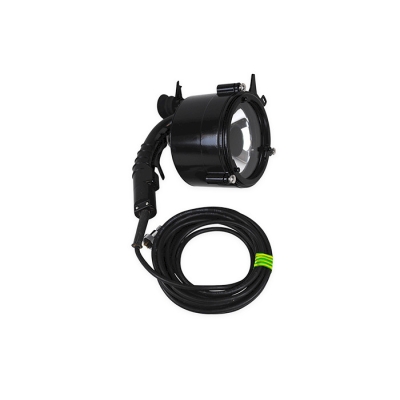

Glamox Daylight signalling
The DM60 signaling lantern is fully approved to the MED Regulations and SOLAS, which states that “all ships of over 150 tons gross tonnage, when engaged on international voyages, shall have onboard an
Reference: GLX-DAYLIGHT-SIGNALLING
Glamox / Marine lighting
Glamox Daylight signalling
The DM60 signaling lantern is fully approved to the MED Regulations and SOLAS, which states that “all ships of over 150 tons gross tonnage, when engaged on international voyages, shall have onboard an efficient daylight signaling lamp which shall not be solely dependent upon the ship’s main source o
The DM60 signaling lantern is fully approved to the MED Regulations and SOLAS, which states that “all ships of over 150 tons gross tonnage, when engaged on international voyages, shall have onboard an efficient daylight signaling lamp which shall not be solely dependent upon the ship’s main source of electrical power.” The 127mm (5”) handheld signaling light can be used on all vessels, for ship to ship signaling usin
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Lightsource/Optic | QT 60W The signalling light is equippedwith a 60Wlight source, and 3 pcs. spare lamps are included in the complete set in accordance to requirements. Highly polished aluminium reflector with safety front glass gives a si |
| Electrical specification | Inherited: 115 – 230 / 12 V 115 – 230 / 24 V Connection with 5.5 meter extendable cable. Charger: Intelligent switch mode battery charger with dual input 115V/230V Charge rate: 12V – 14,7v @ 1 amp 24V – 29,4v @ 0,5 amp B |
| Certificate | Marine Equipment Directive (MED) 2012/32/EU MED Requirements for MED: SOLAS 74 as amended Regulations V/18, V/19, X/3 IMO Res. MSC.36(63)-(1994 HSC Code) IMO Res. MSC.97(73)-(2000 HSC Code) IMO Res. A.694(17) - IMO Res. |
| Specification | Capable of daylight signalling range of 8 miles. Beam divergence of 5°. Transmission rate of 12 words per minute achievable. Light reduction & coloured filters provide control of light output as required. 5.5 metres of s |
| The complete kit includes | High quality Polypropylene carrying case with bespoke foam inserts & integrated charging socket, 4 lamps, battery in case, switch mode battery charger, and red /green coloured filter set. As per MED / SOLAS requirements, |
| Carrying case | Transportation boxof DM60 madeof Polypropylene, with bespoke foam inserts for maximum protection. |
| Weight | Complete kit: 13 kg Carrying case: 4 kg Handheld unit: 2,2 kg Battery pack: 5,8 kg |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
