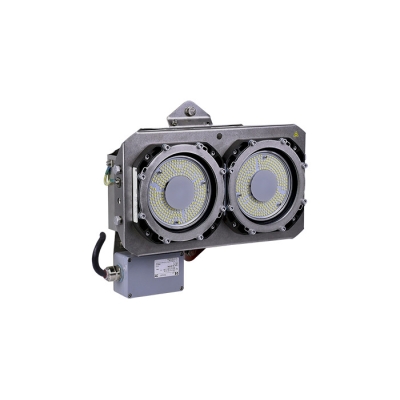

Glamox TX65 LED UL
The TX65 LED LED U area light is designed for installation and use in Hazardous areas, Zones 1 and 2. By using the latest LED technology it offers a virtually maintenance-free solution for all high an
Reference: GLX-TX65-LED-U
Glamox / Marine lighting
Glamox TX65 LED UL
The TX65 LED LED U area light is designed for installation and use in Hazardous areas, Zones 1 and 2. By using the latest LED technology it offers a virtually maintenance-free solution for all high and medium intensity lighting requirements on low power consumption. Seawater resistant aluminum anodi
The TX65 LED LED U area light is designed for installation and use in Hazardous areas, Zones 1 and 2. By using the latest LED technology it offers a virtually maintenance-free solution for all high and medium intensity lighting requirements on low power consumption. Seawater resistant aluminum anodized module housing for excellent cooling. Stainless steel ceiling or pole mounting. The light offers 100 000 hours lifet
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Connection | Ex e external connection box, terminal 6 mm²2 cable glands M25 Ex e brass nickel plated(others on request) standard for cable 10 to 17 mm |
| Mounting | Ceiling mounted or pole mounting(for diameters up to 65mm) |
| Light Source | Array of LEDs with 3000, 4500 lm output per modulein 3000Kor 5000Klight colour temperature and CRI>80. |
| Optic | One or two module versions with safty glaas dome |
| Finish | Modules anodized |
| Housing | Modules in die-casted, seawater resistant aluminium,designed for exelent heat management, frame and bracketstainless steel AISI 316L |
| Ambient temperature (Ta) | Operation: - 50° C up to + 55° C Storage temperature: - 55° C up to + 80° C |
| Approvals | CSA approved, certificate no. 70111393 |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
