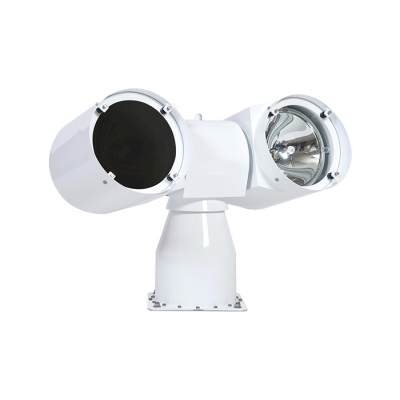

Glamox CL25 HMI Searchlight
Dual-head HMI searchlight producing 66,000 lumens with configurable white and UV light, unlimited movement and optional thermal camera.
Reference: CL25
Glamox — Luminell
Glamox CL25 HMI Searchlight
Dual-head HMI searchlight producing 66,000 lumens with configurable white and UV light, unlimited movement and optional thermal camera.
66,000 lm · 1 lux at 3,200 m230 V AC, 800 W · IP66 · DNV
The CL25 is the entry point into the Luminell HMI searchlight range: 66,000 lumens per head, reaching 1 lux at 3,200 metres. Heads can be configured for white or UV light, and rotation is unlimited in both pan and tilt so there is no dead sector when tracking a target.
Supplied by Citimarine Store as an authorised marine lighting distributor. Glamox — Luminell marine equipment is specified to survive continuous salt-air exposure, vibration and washdown.
Specifications
| Light output | 66,000 lumens at 800 W |
| Beam range | 1 lux at 3,200 m |
| Power consumption | 800 W |
| Supply voltage | 230 V AC |
| Ingress protection | IP66 |
| Operating temperature | −40 °C to +55 °C |
| Body material | Acid-proof stainless steel |
| Approvals | DNV, EMC, FiFi regulation compliant |
| Control | Luminell 3G networked intelligent control |
| Brand | Glamox — Luminell |
Price on request This unit is quoted to specification — voltage, mounting, housing finish and control options all affect the part number and lead time. Tell us your vessel and application and we will come back with a quote. Call 1-800-766-5256 or use the quote request on this page. |
