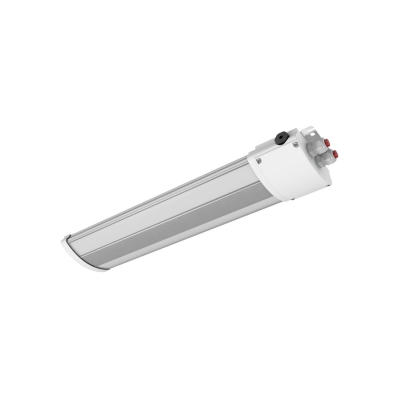

Glamox TL60 LED
The innovative LED outdoor lighting fixtures are applicable for a wide range of different areas, e.g. workshops, engine rooms, stores, passage ways etc. They are designed to meet maritime requirements
Reference: GLX-TL60-LED
Glamox / Marine lighting
Glamox TL60 LED
The innovative LED outdoor lighting fixtures are applicable for a wide range of different areas, e.g. workshops, engine rooms, stores, passage ways etc. They are designed to meet maritime requirements and to save energy and maintenance cost due to extreme long lifetime. The combination of material a
The innovative LED outdoor lighting fixtures are applicable for a wide range of different areas, e.g. workshops, engine rooms, stores, passage ways etc. They are designed to meet maritime requirements and to save energy and maintenance cost due to extreme long lifetime. The combination of material and design assures an excellent heat management and therefore a long lifetime. DNV Certified CRI >80
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Application | For areas like car decks, open decks, engine rooms and other demanding applications such as extreme weather conditions at sea. Design: According to rules of maritime classification societies, additional VDE and IEC/EN |
| Remarks | ES = grounding with earth sheet ET = grounding with earth tag |
| Approvals | DNV |
| Ambient temperature (Ta) | Operation from -35ºC up to +55ºC in standard version |
| Finish | Grey anodized |
| Connection | Connection box with cable entry 2xM25x1.5 polyamide D7-17mm and blind plugs 2xM25x1.5 polyamide Terminal 3-pole/6 mm² |
| Housing | Seawater resistant, anodized aluminium housing |
| Lightsource/Optic | Designed in two length with 2200 or 4500 lumen output from thefixture, Led's arecovered byopalic polycarbonate diffuser. |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
