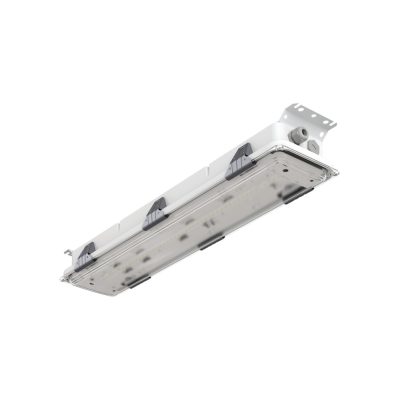

Glamox MIR G2
MIR G2 is a watertight, surface-mounted luminaire in the MULTI family. Ideal for demanding industrial, humid, cold, warm, or sterile environments, it’s also suited for coastal and marine areas. A reli
Reference: GLX-MIR-G2
Glamox / Marine lighting
Glamox MIR G2
MIR G2 is a watertight, surface-mounted luminaire in the MULTI family. Ideal for demanding industrial, humid, cold, warm, or sterile environments, it’s also suited for coastal and marine areas. A reliable choice for challenging lighting projects.
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Light Source | 2500 - 11 000 lumen out Colour temperature 4000 K, CRI Ra 80, MacAdams 3 On request: 3000/5000/6500 K |
| Driver | Fixed output (HF) and DALI dimmable (10-100%). Driver life time up to 120 000 h/10 % (max failure) at Ta 25°C. |
| Body material and colour | Housing in aluminium/zinc treated steel or acid-proof steel with white epoxy/polyester powder coated finish. Alternatively in unpainted acid-proof steel. The diffuser is made of impact-proof frosted polycarbonate (FR/PC) |
| Mounting | The luminaire is supplied with fixed end brackets, triangle suspension or 2 x M8 hood nuts. Bracket for horizontal wire and revolvable bracket to be mounted on the fixed end bracket. M8 rod -, tube -, pole -, cable bridg |
| Cable entry | 1-4 x cable glands: M20 polyamide (cable Ø7-14 mm) M20 nickel plated brass (cable Ø4-12 mm) M25 polyamide (cable Ø9-18 mm) M25 nickel plated brass (cable Ø10-18 mm) |
| Connection | 5 pole 6 mm² screw terminal block. Variants with 5 x 2.5 mm² through wiring. |
| Emergency system | Can be supplied with emergency lighting systems (Standard, Self Test , DALI addressable or Wireless Radio Self Test) with internal battery or external battery box. Some emergency variants are also marine approved (M). |
| Integrated sensors | This product is available with an industrial PIR sensor for wireless communication type CHW-SEN. CHW-SEN is a part of Glamox wireless system for central monitoring. For more information see user manual for the respective |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
