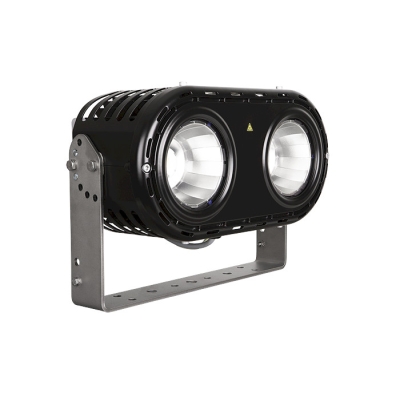

Glamox FL70 LED UL
By using the latest COB LED technology and LED driver technology it offers a virtually maintenance-free solution for all high and medium intensity lighting requirements. With its high lumen output the
Reference: GLX-FL70-LED-U
Glamox / Marine lighting
Glamox FL70 LED UL
By using the latest COB LED technology and LED driver technology it offers a virtually maintenance-free solution for all high and medium intensity lighting requirements. With its high lumen output the FL70 offers one of the best Lumen per Watt in the market. The product design has been undergoing th
By using the latest COB LED technology and LED driver technology it offers a virtually maintenance-free solution for all high and medium intensity lighting requirements. With its high lumen output the FL70 offers one of the best Lumen per Watt in the market. The product design has been undergoing thorough heat conduction and dissipation simulations, giving all components optimal conditions and ensuring long life time
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Application | FL70, LED Floodlight is designed for installation and use in safe areas. The product design has been undergoing thorough heat conduction and dissipation simulations, giving all components optimal conditions and ensuring |
| Housing | Finish: Black Powder coated Cover sheet: Seawater resistant anodized aluminium / black Diffuser: Safety glass clear Finish: Black Powder coated Junction Box in GRP |
| Beam angle | SB 18 - XNB 27 - XNB 39 - NB 60 - MB 80 - WB 100 - XWB 120 |
| Light Source | COB LEDs Light colour: 5000K |
| Temperature range | -35 °C / +55 °C |
| Operating voltages | 120-277V AC - 50/60 Hz Power consumption: 176W (per module) System energy: 147,5 lm/W Lumen out: 27000 lumen for the one module version, 54000 lumen for the two module version |
| Others | Protection grade: IP 66/67 Operation voltages: 120-277V AC - 50/60 Hz Power factor: 0.9 Connection: Junction box: GRP / Grey. UV resistant, seawater resistant and vibration proofed. |
| Mounting | Mounted by stainless steel bracket 316L |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
