Zipwake Interceptor 600 E Tunnel R500 Series E
Tunnel-shaped interceptors provide the perfect lift-force solution for hulls with propeller tunnels. In contrast to straight interceptors, the tunnel interceptor’s constant radius curvature allows mounting above the...
Reference: ZW2012021
In Stock: 3
$4,505.60
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
|
Series E · Interceptor Interceptor 600 E Tunnel R500 Series E Part no. ZW2012021 |
The interceptor is where the work happens. A vertical blade on the transom drops into the water flow to generate instant lift, reacting 5 to 10 times faster than a hinged trim tab in far less transom space. This is a Series E unit.

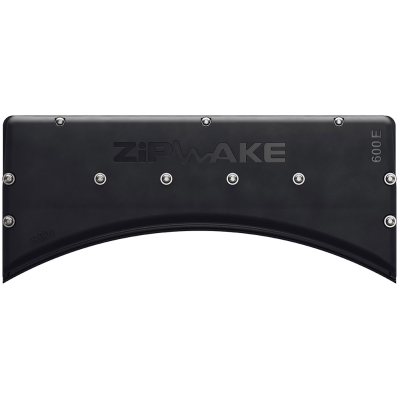

Tunnel-shaped interceptors provide the perfect lift-force solution for hulls with propeller tunnels. In contrast to straight interceptors, the tunnel interceptor’s constant radius curvature allows mounting above the propeller tunnel to fully or partially use the otherwise unutilized part of the beam for lift generation.
Part Number: ZW2012021
How Zipwake keeps your boat level |
Specifications
| Max Boat Speed | 50 knots |
| Blade Stroke | 60 mm (2.4 in) |
| Blade Rate | 40 mm/s (1.6 in/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-E |
| Cable Material | PUR |
| Connector | M12 5-pin circular |
| Connector Diameter | 0.57" (14.5 mm) |
| Cable Length | 10' (3 m), extendable up to 20' (6 m) |
| Voltage | 12-32VDC |
| Power Consumption | 25W max |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Compliance | CE, FCC |
| Series | Series E |
| Part Number | ZW2012021 |
Key features
Fully automatic Built-in GPS, 3D gyro and 3D accelerometer read the boat’s motion and trim continuously. |
5–10× faster than trim tabs Interceptor blades move vertically in a short stroke, reacting far quicker than hinged tabs. |
Less transom space An interceptor occupies a fraction of the transom area a comparable trim tab needs. |
Smoother, drier ride Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed. |
Plug-together install M12 5-pin connectors throughout — no splicing or custom looms. |
IP68 sealed Interceptors are rated to 16 ft (5 m) submersion with PUR cabling. |
| Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel. |
