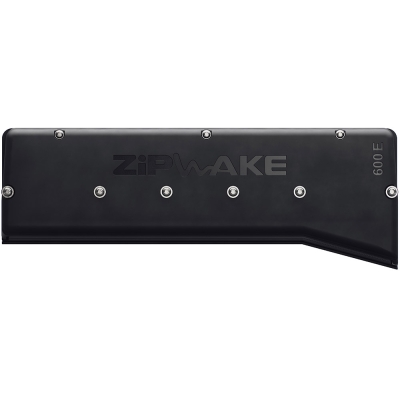

Zipwake Interceptor 600 E Chine Starboard Series E
Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine...
Reference: ZW2012025
In Stock: 1
$3,713.60
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
|
Series E · Interceptor Interceptor 600 E Chine Starboard Series E Part no. ZW2012025 |
The interceptor is where the work happens. A vertical blade on the transom drops into the water flow to generate instant lift, reacting 5 to 10 times faster than a hinged trim tab in far less transom space. This is a Series E unit.
Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine interceptor matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors. Chine interceptors are particularly useful when transom space is limited abeam of swim platform lifts, waterjets, surface drives or outboards.
Part Number: ZW2012025
How Zipwake keeps your boat level |
Specifications
| Max Boat Speed | 50 knots |
| Blade Stroke | 60 mm (2.4 in) |
| Blade Rate | 40 mm/s (1.6 in/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-E |
| Cable Material | PUR |
| Connector Diameter | 0.57" (14.5 mm) |
| Cable Length | 10' (3 m), extendable up to 20' (6 m) |
| Voltage | 12-32VDC |
| Power Consumption | 25W max |
| Ingress Protection | IP68 |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Compliance | CE, FCC |
| Series | Series E |
| Part Number | ZW2012025 |
Key features
Fully automatic Built-in GPS, 3D gyro and 3D accelerometer read the boat’s motion and trim continuously. |
5–10× faster than trim tabs Interceptor blades move vertically in a short stroke, reacting far quicker than hinged tabs. |
Less transom space An interceptor occupies a fraction of the transom area a comparable trim tab needs. |
Smoother, drier ride Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed. |
Plug-together install M12 5-pin connectors throughout — no splicing or custom looms. |
IP68 sealed Interceptors are rated to 16 ft (5 m) submersion with PUR cabling. |
| Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel. |
