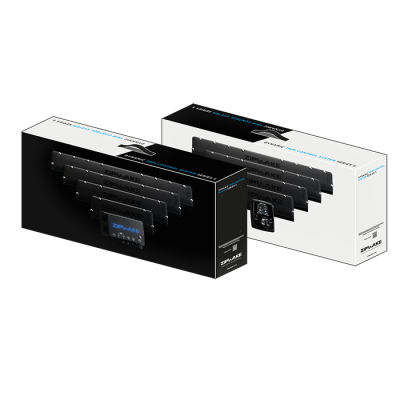

Zipwake Kit Box 750 S for Integration 29.53" (750mm)
A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 4m power...
Reference: ZW2011518
$4,936.80
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
|
Series S · Dynamic Trim Control System Kit Box 750 S for Integration 29.53" (750mm) Part no. ZW2011518 |
Zipwake trims your boat for you. This Series S Kit Box is a complete Dynamic Trim Control System in one part number — interceptors, cabling, distribution unit and control interface.
A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 4m power cable, 1 integrator module and a 7m standard cable). Any base installation can be expanded with up to two extra pairs of Series S interceptors, thus allowing a total of six interceptors without any need for additional connectors or power supply.
Part Number: ZW2011518
How Zipwake keeps your boat level |
Specifications
| Max Boat Speed | 60 knots |
| Blade Stroke | 1.2" (30mm) |
| Blade Rate | 0.8 in/s (20 mm/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-S |
| Cable Material | PUR |
| Connector | M12 5-pin circular |
| Connector Diameter | 0.57" (14.5 mm) |
| Cable Length | 10' (3 m), extendable up to 20' (6 m) |
| Voltage | 12-32VDC |
| Power Consumption | 25W max |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Compliance | CE, FCC |
| Series | Series S |
| Part Number | ZW2011518 |
Key features
Fully automatic Built-in GPS, 3D gyro and 3D accelerometer read the boat’s motion and trim continuously. |
5–10× faster than trim tabs Interceptor blades move vertically in a short stroke, reacting far quicker than hinged tabs. |
Less transom space An interceptor occupies a fraction of the transom area a comparable trim tab needs. |
Smoother, drier ride Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed. |
Plug-together install M12 5-pin connectors throughout — no splicing or custom looms. |
IP68 sealed Interceptors are rated to 16 ft (5 m) submersion with PUR cabling. |
| Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel. |
