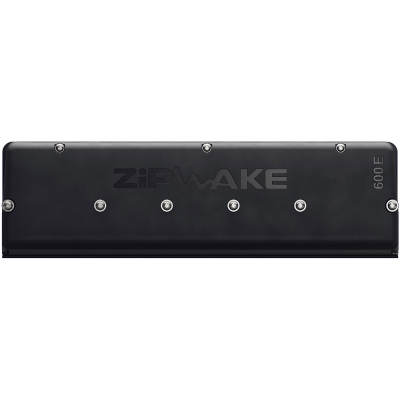

Zipwake Interceptor 600 E with Cable 3 Series E

The interceptor is where the work happens. A vertical blade on the transom drops into the water flow to generate instant lift, reacting 5 to 10 times faster than a hinged trim tab in far less transom space. This is a Series E unit.

Series E is a family of large, fast-acting interceptors that includes three straight, three tunnel and two chine models. Their blade rate and stroke are 40 mm/s and 60 mm respectively. The large, modular design made for mass production means the interceptors are durable, affordable and particularly well adapted to any planing or semi-planing boat between 50-100 ft.All components have been meticulously engineered to withstand impact and avoid water ingress, minimizing the risk of costly maintenance and downtime. Interceptor or blade actuation takes place by way of two calibration-free submersible electric servos in the interceptor unit. Natural water cooling provides excellent working conditions for the brushless DC servo motors, which run on 12-32 volts.Installation is made easy with an integral mounting plate and the option of a concealed or above- waterline, self-sealing, thru-hull cable fitting. The preferred mounting option is achieved by simply routing the servo cable as shown below. Each interceptor comes with the thru-hull cable fitting, cable cover and a practical drill template.

Part Number: ZW2012018

Specifications

Key features
