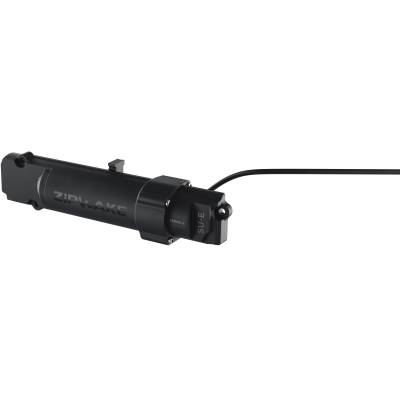

Zipwake Servo Unit E - 400 Series E with Cable 3 M
The Series E submersible electrical servo unit fits inside the interceptor, where it drives with precision the mechanism that provides linear motion to the interceptor blades. For extended service life, the servo...
Reference: ZW2012235
In Stock: 20
$638.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
|
Series E · Interceptor Servo Unit E - 400 Series E with Cable 3 M Part no. ZW2012235 |
The interceptor is where the work happens. A vertical blade on the transom drops into the water flow to generate instant lift, reacting 5 to 10 times faster than a hinged trim tab in far less transom space. This is a Series E unit.
The Series E submersible electrical servo unit fits inside the interceptor, where it drives with precision the mechanism that provides linear motion to the interceptor blades. For extended service life, the servo unit has double shaft seals and a precision-ground shaft in special high-grade stainless steel. The unit is fast-acting, durable, calibration free and easy to install or replace. It comes with a rugged 3 m cable with a self-sealing thru-hull fitting.
Part Number: ZW2012235
How Zipwake keeps your boat level |
Specifications
| Servo Actuator | SU-S |
| Cable Material | PUR |
| Connector | M12 5-pin circular |
| Connector Diameter | 0.57" (14.5mm) |
| Cable Length | 10' (3 m), extendable up to 20' (6 m) |
| Voltage | 12-32VDC |
| Power Consumption | 25W max |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Compliance | CE, FCC |
| Ingress Protection Rating (IP) | IP65+ |
| Series | Series E |
| Part Number | ZW2012235 |
Key features
Fully automatic Built-in GPS, 3D gyro and 3D accelerometer read the boat’s motion and trim continuously. |
5–10× faster than trim tabs Interceptor blades move vertically in a short stroke, reacting far quicker than hinged tabs. |
Less transom space An interceptor occupies a fraction of the transom area a comparable trim tab needs. |
Smoother, drier ride Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed. |
Plug-together install M12 5-pin connectors throughout — no splicing or custom looms. |
IP68 sealed Interceptors are rated to 16 ft (5 m) submersion with PUR cabling. |
| Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel. |
