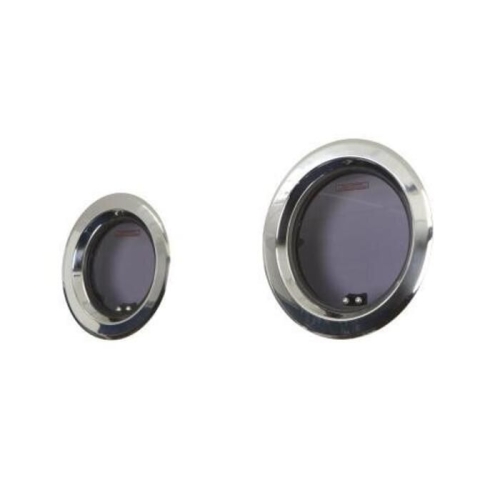

Lewmar Hatches - Round Stainless Portlight
Lewmar's stainless portlights feature a 316 polished stainless outer frame, chrome trim inside, and easy installation with clamp-style mounting for a secure fit.
Reference: 30133000
$459.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Lewmar Hatches - Round Stainless Portlight
Specifications
| Overall Diameter | Version | Trim Color | Weight | Cut-Out Diameter |
|---|---|---|---|---|
| 9 7/8" (250 mm) | Opening | Chrome | 3 lbs (1.4 kg) | 9 1/16" (230 mm) |
| 11 5/8" (296 mm) | Opening | Chrome | 4 lbs (2 kg) | 10 7/8" (277 mm) |
Mounting Instructions:
- Portlights should be fitted to a flat surface with a maximum tolerance of 0.04" (1 mm)
- Maximum hull thickness 0.9" (24 mm), minimum hull thickness 0.3" (8 mm)
- Portlight opening is restricted on very thick hulls. Opening angle at 0.8" (21 mm) hull thickness is 165°
- All Portlights supplied with M5 x 20 screws (suit hull thickness 12 - 17 mm)
- No Flyscreen available for the Round Stainless Portlight
