Webasto FCF Classic 12,000 BTU Marine Air Conditioner - 115V
Webasto FCF Classic 12,000 BTU Self-Contained Marine Air Conditioner - 115V. Compact, easy-to-retrofit, efficient and whisper quiet cooling. Quality manufacturing includes long-lasting enamel finish, robust blower able to handle multiple vents & quiet, low-vibration compressor. Reverse cycle heating. Digital control panel included. Good replacement option for Dometic ECD10k.
*2-Year Warranty & Free US Shipping!
Click here for details
Webasto FCF Classic 12000 Marine Air Conditioner - 12,000 BTUs, 115V - FCF0012000GS
Built with an ultra-silent and balanced compressor, the Webasto FCF12 minimizes noise and vibrations. This powerful and efficient system cools down or heats up your entire cabin without disrupting your sleep or activities. Features include a baked-on enamel finish and gold-anodized evaporators for superior corrosion resistance. Compact assemblies are contained by a sturdy one-piece stainless steel chassis with extra-deep condensation tray for added corrosion protection.
Select one of these units as a replacement for your existing AC (and reuse your existing ductwork) - or for a first-time installation with one of the FCF Series Seawater Kits and Air Duct Kits (sold separately).
New FCF Classic Series Features
- Extra low compressor vibration and noise
- Replaceable air filter for cleaner air
- High velocity / 3-speed / 360° rotatable blower
- Corrosion-free stainless steel condensation tray
- Long-lasting, baked-on enamel finish
- Reverse cycle heating function
- R410A refrigerant
- Multi-inlet port evaporator
- Ultra-Silent compressor
- Good replacement option for Dometic ECD10k - 115V
- 5" ducting collar,
- High-velocity 360° rotatable blower

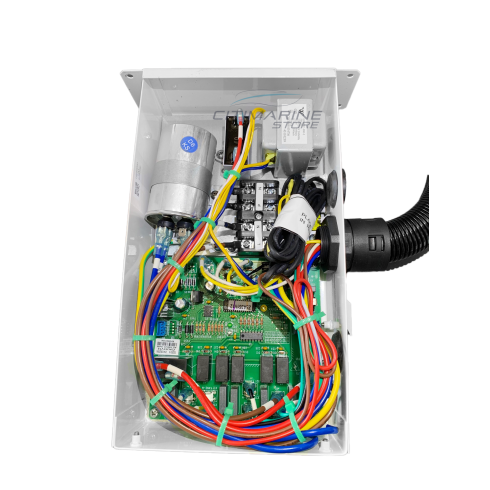

- Remote mount electrical box

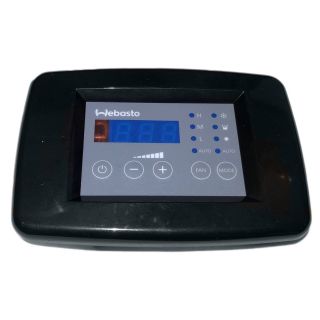

- Digital control with bezel
- Air filter
- Remote control
- R410A refrigerant
Installation Notes If Replacing Dometic ECD10k - 115V
The Webasto FCF 12000 is a good replacement option for the Dometic ECD 10k, but there are some differences that should be noted when installing the Webasto:
- The Webasto FCF uses 4 and 5 inch ducting whereas the Dometic uses 5 and 6 inch. An easy replacement as the flex ducting can be cinched down in size easily.
- Condenser sizes are different. A boat having Dometic on it would be using 5/8” water lines. When replacing with a Webasto FCF unit, a provided 5/8” to 3/4” adapter (included with the unit) is required with a short length of 3/4” water hose to connect to the larger, superior Webasto condenser. Also an easy task, but needs mentioning.
- The controller is not interchangeable meaning the cable and controller must be replaced. Both the cable and controller are included with every FCF unit.
There are very slight differences in the dimensions to take into account when considering installation location, but this is rarely a problem.
Technical Specifications for Webasto FCF0012000GS / FCF12
|Cooling capacity (BTU / h)||12,000|
|Rated Current (A)||8.5|
|Min. Supply Air||50 in2 (323 cm2)|
|Min. Return Air||100 in2 (645 cm2)|
|Blower Output||410 cfm (696 m3 /h)|
|Ducting Collar (Diameter)||5 in (127 mm)|
|Seawater Inlet / Outlet (Diameter)||3/4 in (19 mm) - 5/8" Adapter Included with the unit|
|Drain Pan Outlet (Diameter)||5/8 in (15.9 mm)|
|Dimensions||15" L x 13" H x 17.2" D|
|Weight (lbs / kg)||68 / 31|
FCF Classic 12,000 BTU's Spare Parts Diagram
Founded in 1901, Webasto is a family-owned business based out of Stockdorf, Germany. With 12,000 people employed at more than 50 locations worldwide, Webasto is a global innovative systems partner to leading yacht manufacturers and boat builders for marine A/C and heating solutions. An outstanding network of production facilities and dealers guarantees high quality products, installation standards and services worldwide. Webasto has air conditioning systems suitable for any boat or yacht.
