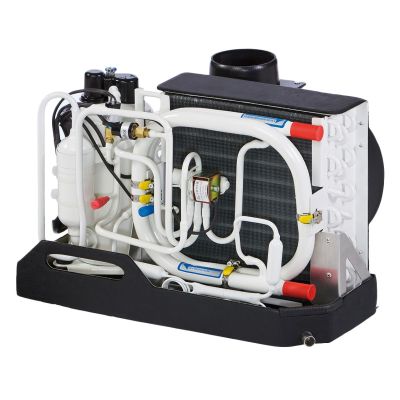

Webasto S10 BlueCool S Series - 230V - 10,000 BTU's

Webasto S10 Blue Cool S Series Self-Contained Marine Air Conditioner - 230V - 10,000 BTU's. Quiet, powerful and highly-efficient marine a/c unit. 270 degree rotatable blower. Updated to be fully 50 / 60 Hz compatible - suitable for worldwide usage. All units are epoxy-painted and come with a stainless steel drain pan for durable corrosion protection. R410 refrigerant. Reverse cycle heating function. Display included.
*2-Year Warranty & Free US Shipping!

Webasto S10 BlueCool S Series

Reference: WBCL120002E
Reg Price: $1,890.00
CPlus Price: Login for Pricing
What is Citimarine Plus Membership?
Click here for details

Free US Shipping on This Item!
Global Shipping Calculator
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

Webasto S10 BlueCool S Series - 230V - 10,000 BTU's - R410A


Webasto S10 BlueCool S Series Unit - WBCL120002D


Webasto S10 BlueCool S Series self-contained air conditioners are suitable for boats with up to three cabins. The range is designed in a compact way. For a solid and highly functional base, they are mounted on extra-deep, thermally insulated, stainless steel trays. All units are expoxy-painted for durable corrosion protection. Highly efficient compressors allow extremely low power consumption. Additionally, a multi-point injection evaporator offers higher unit efficiency. The installation of a self-contained unit is very simple. Each cabin has its own self-contained unit providing cool air to the cabin. Generated heat is transferred to the sea via the sea water circuit. The control unit is located in the same cabin as the air conditioner

The S-Series offer a unique feature with the BlueCool Expert Tool that is connected via a single USB cable to a PC. On site servicing and remote assistance are now a child’s play.

Part Number: WBCL120002E

Webasto Blue Cool S10 Features

  • Up to 15% increased efficiency
  • Continuous operation even under tropical conditions
  • Overall size is reduced up to 20%
  • Suitable for worldwide usage
  • New electronics with USB diagnosis
  • Quiet operation & robust design
  • Soft start devices available as an option

Webasto Self Contained Unit Features

  • Stand alone unit
  • Heating function via reverse cycle integrated
  • Extremely compact
  • All components on one tray
  • Seven sizes available
  • Lowest power consumption

What's Included?

  • 4" ducting collar,
  • High-velocity 270° rotatable blower
  • Remote mount electrical box
  • MyTouch digital control with bezel
  • Air filter
  • R410A refrigerant

MyTouch Control Display Included

Webasto MyTouch Control Display

  • The BlueCool MyTouch display is the new standard display for all BlueCool A/C Series:
  • Full color, high resolution, interactive 2,4” touch screen
  • Multiple customization options available (design, colors, language, photos, etc.)
  • Protected: full access to system configuration parameters
  • Compatible with Vimar Eikon, Eikon EVO, Plana, Bticino Axolute

Technical Specifications and Dimensions for WBCL120002E

Cooling capacity (BTU / h)

10,000

Cooling capacity (kW)

2.9

Heating via reverse cycle integrated

Yes

Voltage (V)

230

Frequency (Hz)

50/60

Current draw running (230 V) (A) 50 Hz

2.6 - 4.0

Current draw Start max. peak (230 V) (A) 50 Hz

27

Air flow (free blowing) (230 V) (m3 / h, cfm)

400 / 235

Sea water connection (mm / inch)

19 / 3/4

Minimum sea water flow at 50 Hz (230 V) (l / min.)

10

Minimum sea water flow at 60 Hz (230 V) (l / min.)

12

Recommended seawater pump

WB350

Dimensions unit (L x D x H) (mm / inch)

475 x 330 x 310
15.7 x 12.6 x 12.0

Ø Blower connection (mm / inch)

100/4

Weight core unit (kg / lbs)

22 / 49




Webasto BlueCool S Series Dimension

BlueCool S Series Video


Webasto

About Webasto - Founded in 1901, Webasto is a family-owned business based out of Stockdorf, Germany. With 12,000 people employed at more than 50 locations worldwide, Webasto is a global innovative systems partner to leading yacht manufacturers and boat builders for marine A/C and heating solutions. An outstanding network of production facilities and dealers guarantees high quality products, installation standards and services worldwide. Webasto has air conditioning systems suitable for any boat or yacht.
