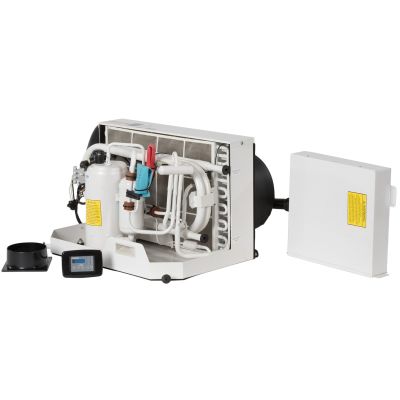

Webasto FCF Platinum 25,000 BTU Marine Air Conditioner - 230V
Webasto FCF Platinum 25000 Marine Air Conditioner - 230V, 50/60 Hz - R410A. The latest development in Webasto’s line of marine A/Cs, the FCF Platinum series features improved design and higher BTU/h rating. Powerful, quiet and efficient cooling. Digital display & cable included. Reverse cycle heating. Part Number: 5011403A. *2-Year Warranty
Reference: 5011403A
Reg Price: $3,692.25
CPlus Price:
Login for Pricing
Join Citimarine Plus and save big on thousands of marine accessories on our site every day with special discounted prices for members. Pricing is often below what we can advertise. Get exclusive special offers and incentives. 1 Year Membership.
What is Citimarine Plus Membership?
Click here for details
Click here for details
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator
Webasto FCF Platinum 25000 Marine Air Conditioner - 25,000 BTUs, 230V
The all-new FCF Platinum series is the latest development in Webasto’s line of marine comfort solutions. The FCF Platinum features improved design, offering a higher BTU/h rating across a variety of ambient scenarios, while providing unmatched product reliability and a two-year warranty. Powerful, quiet and efficient.
New FCFP Platinum Series Features
- Long and slim footprint to allow for easy replacement of existing units
- Engineered for better performance with a higher BTU/h rating across a variety of ambient scenarios
- Reverse cycle heating function
- Digital display, controller and cable comes standard
- 2-year warranty with unmatched product reliability
- Marine-grade stainless steel frame for durability and longevity
- Proprietary compressor - well balanced and quieter than ever before
- Low cost replacement parts
What's Included?
- 2 - 5" ducting collar,
- 2 - High-velocity 360° rotatable blowers
- Remote mount electrical box
- Digital control with bezel
- Air filter
- R410A refrigerant
- NO REMOTE CONTROL (OPTIONAL)
Installation Notes If Replacing a Dometic Unit
The Webasto FCF Platinum 25000 is a good replacement option for Dometic, but there are some differences that should be noted when installing the Webasto:
- The Webasto uses 4 and 5 inch ducting whereas the Dometic uses 5 and 6 inch. An easy replacement as the flex ducting can be cinched down in size easily.
- Condenser sizes are different. A boat having Dometic on it would be using 5/8” water lines. When replacing with a Webasto FCF unit, a provided 5/8” to 3/4” adapter (included with the unit) is required with a short length of 3/4” water hose to connect to the larger, superior Webasto condenser. Also an easy task, but needs mentioning.
- The controller is not interchangeable meaning the cable and controller must be replaced. Both the cable and controller are included with every FCF platinum unit.
There are very slight differences in the dimensions to take into account when considering installation location, but this is rarely a problem.
Technical Specifications and Dimensions of the Webasto 5011403A
| Part Number | 5011403A |
| Cooling capacity (BTU / h) | 25,000 |
| Heating Capacity (BTU / h) | 25,000 |
| Voltage (V) | 230 |
| Frequency (Hz) | 50/60 |
| Rated Current (A) | 6.8 / 8.0 |
| Comp. LRA (A) | 52 |
| Refrigerant Charge (Lbs) | 2.09 |
| Seawater Inlet | 3/4" - 5/8" Adapter included with unit |
| Min. Condenser Water Flow (Gal/min) | 6.34 |
| Blower Connection Size (mm/in) | 125/5 |
| Dimensions unit (L x D x H) (mm / inch) | 529 x 595 x 386 20.83 x 23.43 x 15.2 |
| Weight (kg / lbs) | 60.5 / 133 |

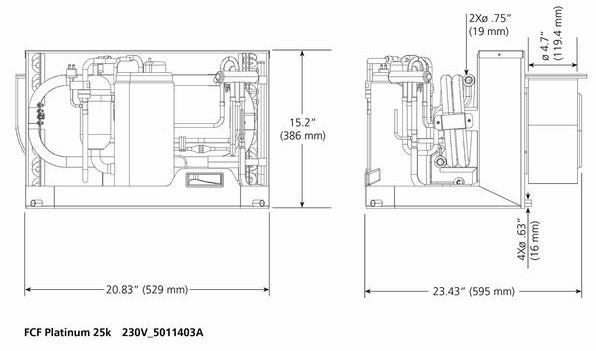

Dimensions
Founded in 1901, Webasto is a family-owned business based out of Stockdorf, Germany. With 12,000 people employed at more than 50 locations worldwide, Webasto is a global innovative systems partner to leading yacht manufacturers and boat builders for marine A/C and heating solutions. An outstanding network of production facilities and dealers guarantees high quality products, installation standards and services worldwide. Webasto has air conditioning systems suitable for any boat or yacht.
