Webasto FCF Platinum 6,000 BTU Marine Air Conditioner - 115V

Webasto FCF Platinum 6000 BTU Marine Air Conditioner - 115V, 60 Hz - R410A - 6,000 BTU's. The latest development in Webasto’s line of marine A/Cs, the FCF Platinum series features improved design and higher BTU/h rating. Powerful, quiet and efficient cooling. Digital display & cable included. Reverse cycle heating. Good replacement option for Dometic DTU6 - 115VPart Number: 5011394A.

*2-Year Warranty & Free US Shipping!

Webasto 5011394A

Reference: 5011394A
In Stock: 4
Reg Price: $1,397.81
CPlus Price: Login for Pricing
What is Citimarine Plus Membership?
Click here for details

Shipping Calculator
Free US Shipping on This Item!
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

Webasto FCF Platinum 6000 Marine Air Conditioner - 6,000 BTUs, 115V
6000 BTU Marine Air Conditioner

The all-new FCF Platinum series is the latest development in Webasto’s line of marine comfort solutions. The FCF Platinum features improved design, offering a higher BTU/h rating across a variety of ambient scenarios, while providing unmatched product reliability and a two-year warranty. Powerful, quiet and efficient.

New FCFP Platinum Series Features

  • Long and slim footprint to allow for easy replacement of existing units
  • Engineered for better performance with a higher BTU/h rating across a variety of ambient scenarios
  • Reverse cycle heating function
  • Digital display, controller and cable comes standard
  • 2-year warranty with unmatched product reliability
  • Marine-grade stainless steel frame for durability and longevity
  • Proprietary compressor - well balanced and quieter than ever before
  • Low cost replacement parts
  • Good replacement for the Dometic DTU6 - 115V

What's Included?

  • 4" ducting collar,
  • High-velocity 360° rotatable blower
  • Remote mount electrical box
  • Digital control with bezel
  • Air filter
  • R410A refrigerant
  • NO REMOTE CONTROL (OPTIONAL)

Installation Notes If Replacing a Dometic DTU6 - 115V

The Webasto FCF Platinum 6000 BTU Marine Air Conditioner is a good replacement option for the Dometic DTU6, but there are some differences that should be noted when installing the Webasto:

  • The Webasto uses 4 and 5 inch ducting whereas the Dometic uses 5 and 6 inch. An easy replacement as the flex ducting can be cinched down in size easily.
  • Condenser sizes are different. A boat having Dometic on it would be using 5/8” water lines. When replacing with a Webasto FCF unit, a provided 5/8” to 3/4” adapter (included with the unit) is required with a short length of 3/4” water hose to connect to the larger, superior Webasto condenser. Also an easy task, but needs mentioning.
  • The controller is not interchangeable meaning the cable and controller must be replaced. Both the cable and controller are included with every FCF platinum unit.

There are very slight differences in the dimensions to take into account when considering installation location, but this is rarely a problem.

Technical Specifications and Dimensions of the Webasto 5011394A

Part Number 5011394A
Cooling capacity (BTU / h) 6,000
Heating Capacity (BTU / h) 6,000
Voltage (V) 115
Frequency (Hz) 60
Rated Current (A) 4.7
Comp. LRA (A) 21
Refrigerant Charge (Lbs) 0.77
Seawater Inlet 3/4" - 5/8" Adapter included with the unit
Min. Condenser Water Flow (Gal/min) 1.06
Blower Connection Size (mm/in)  100/4
Dimensions unit (L x D x H) (mm / inch) 285 x 408 x 295
11.2 x 16 x 11.6
Weight (kg / lbs) 25.5 / 56

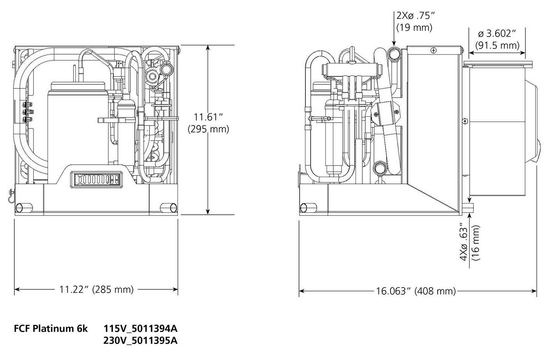

Dimensions

Webasto Dometic DTU6 Replacement


FCF Platinum 6,000 BTU's Spare Parts Diagram

Webasto 6,000 fcf platinum spare parts
Webasto FCF Platinum 6-10 Spare Parts.pn


Webasto

Founded in 1901, Webasto is a family-owned business based out of Stockdorf, Germany. With 12,000 people employed at more than 50 locations worldwide, Webasto is a global innovative systems partner to leading yacht manufacturers and boat builders for marine A/C and heating solutions. An outstanding network of production facilities and dealers guarantees high quality products, installation standards and services worldwide. Webasto has air conditioning systems suitable for any boat or yacht.
