Dragonfly 5m 5" GPS / Chartplotter

Dragonfly 5m 5" GPS / Chartplotter

By buying this product you can collect up to Your cart will total 36 points that will be converted into a of $3.60 towards your next purchase! Must be to collect points.

Dragonfly 5m 5" GPS / Chartplotter

Customer ratings and reviews

RAYMARINE DRAGONFLY 5M. 5" All-weather, high-definition LED, optically-bonded display for sharp color, wide viewing angles & no internal fogging. No sonar. Precision guidance, 50-channel fast acquisition GPS sensor. Ball & socket tilt swivel mounts Dragonfly easily to any surface. Store up to 3000 waypoints & 15 tracks. E70295. No charts included. Details below.

Discontinued. (Click Here for New Models)

$299.99

Add to cart
Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

Dragonfly 5M GPS / Chartplotter

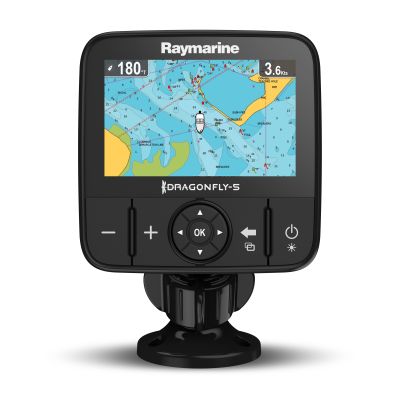

Dragonfly 5M GPS. 5" GPS (no sonar) gets you on track with a fast 50-channel GPS and the super-easy Dragonfly user interface. With Dragonfly, there is no waiting for charts to load. A fast processor makes panning, zooming, and exploring maps simple and fun. Dragonfly's all-weather, high-definition color LCD display makes maps come to life and optical bonding protects the display from internal fogging.


GENERAL SPECIFICATIONS

Nominal Supply Voltage 12 V DC
Operating Voltage Range 10.8 V DC to 15.6 V DC
Power Consumption At Full Brightness 5M – 2.9 W RMS
Connections Transducer combined input
5M Power only
Waterproofing Standard IPX6 and IPX7
Display Size 5.0 in
Display Resolution 800 x 480 WVGA
Aspect Ratio 15:9

GPS & CARTOGRAPHY (5M MODEL ONLY)

GPS Channels 72 GPS / GLONASS Channels
Chart Compatibility LightHouse vector and raster charts | Navionics Gold, Plus, Hotmaps and SonarChart | C-MAP by Jeppesen
Waypoints 3,000 waypoints (split between up to 100 waypoint groups)
Tracks 15 tracks (each track can contain up to 10,000 points)
Chart Media MicroSD

RAYMARINE Dragonfly 5M GPS/Chartplotter E70295
