Muir Inline Vertical Capstan - VC800 - 600W - 12 V - 396 lb Max Load - (No-Gypsy)

Name: Muir Inline Vertical Capstan - VC800 - 600W - 12 V - 396 lb Max Load - (No-Gypsy)
Brand: Muir
SKU: VC800
Availability: InStock

The Muir Inline Vertical Capstan, specifically the VC800 model, is a powerful and efficient marine capstan designed for vertical mounting. It boasts a 600W one-piece integrated gearbox/motor assembly, offering increased power and speed compared to traditional gear systems. This capstan is suitable for a wide range of marine applications, including mooring, warping, anchoring, line hauling, and fishing. It is designed to accommodate various deck thicknesses and is available in a 12V DC configuration, making it a versatile and practical choice for boats and vessels.

Reference: VC800

$990.00

Free US Shipping on This Item!*

International Shipping Calculator

Return Policy

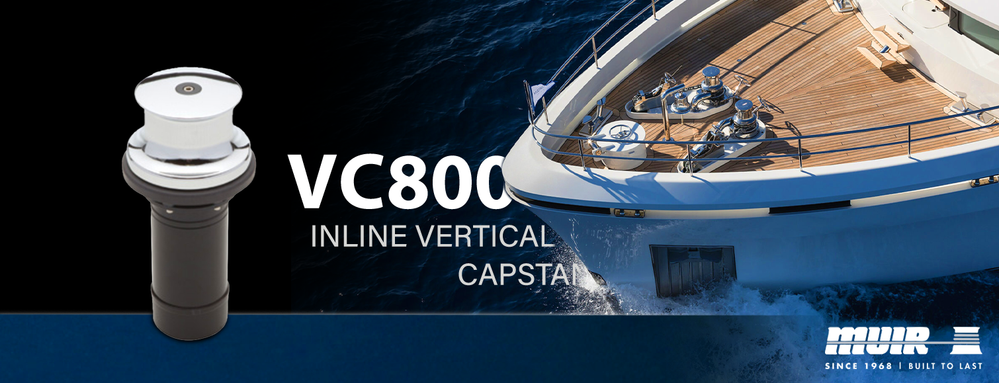

Inline Vertical Capstan VC800 - Windlass

MUIR - VC800 - MAIN Muir introduce the new Inline drive capstans, delivering more power when you need it. These highly efficient and light weight capstans are fitted with a 600w one-piece integrated gearbox/motor assembly which provides increased power and speed normally not achieved with conventional gear systems. The one-piece assembly significantly reduces installation time and is ideal for use where below deck space is restricted. Designed to suit vessels up to 11m (36ft) the Inline capstan can be used for mooring, warping, anchoring, line hauling and fishing from any direction and are well suited to any application in either vertical or horizontal mounting positions. Accommodating various deck thickness, these models are available in 12V DC.

PRODUCT DETAILS

VESSEL LENGTH	Up to 11m (Up to 36ft)
POWER SUPPLY (DC)	12V
MOTOR (Watts)	600
MAX LOAD	180kg (396lb)
WORKLOAD	36kg (80lb)
AMPS WORKLOAD	75
MAX LINE SPEED	39m/ min (128ft/ min)
CHAIN SIZE	N/A
ROPE SIZE	Up to 12mm (Up to 1/2")
WEIGHT	8kg (18lbs)
BRAKE	Auto action roller clutch - will not run back
