Muir Storm - VR2500 - 1200W - 12 or 24V - 2500 lb Max Load

Name: Muir Storm - VR2500 - 1200W - 12 or 24V - 2500 lb Max Load
Brand: Muir
SKU: VR2500
Availability: InStock

Designed for vessels up to 20m (65ft), and in low profile, the MUIR Storm windlass offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability.

Reference: VR2500-3/8HT-12V

$5,130.00

Select Voltage

Please Select Gypsy/Chain Size

Free US Shipping on This Item!*

International Shipping Calculator

Return Policy

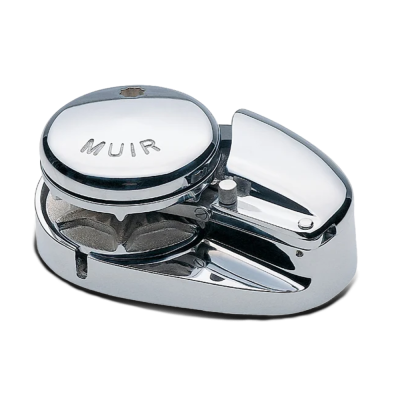

MUIR - Storm VR 2500 Windlass

MUIR - VR-VRC2500 - MAIN Designed for vessels up to 20m (65ft), and in low profile, the MUIR Storm windlass offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability. Manufactured from polished stainless steel components the Storm Windlass will weather the harshest of conditions. Storm Windlasses represent the pinnacle of reliability and performance and are packed with the features and quality you have come to expect from Muir. Designed on the principals of the award-winning Atlantic series with all its features and more.

PRODUCT DETAILS

VESSEL LENGTH	14-20M (45-65ft)
POWER SUPPLY (DC)	12/24V, AC Electric Available
MOTOR (Watts)	1200
HYDRAULIC PRESSURE	10MPa (1450PSI)
HYDRAULIC FLOW	20L/ min (5.5gal/ min)
MAX LOAD	1136kg (2505lb)
WORKLOAD	379kg (833lb)
AMPS WORKLOAD (DC)	150/70
MAX LINE SPEED	13.5m/min (44ft/min)
RECOVERY RATE	N/A
CHAIN SIZE	10mm (3/8"), 13mm (1/2") (chain only), 8mm (5/16")
ROPE SIZE	14mm (9/16"), 16mm (5/8")
NET WEIGHT	DC VR 40kg (88lb) \| HYD VR 38kg (84lb)
MANUAL OPERATION	MORS (opt)
