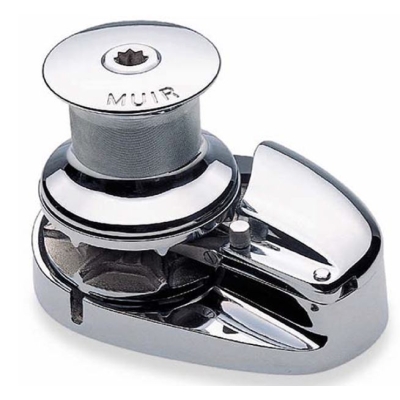

Muir Storm - VRC1250 - 1000W - 12 or 24 V - w/Capstan - 1100 lb Max Load
Designed for vessels up to 13m (42ft), and in low profile and capstan configurations, they offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability.
Reference: VRC1250-3/8HT-12V
$2,857.50
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Storm VRC 1250 - Windlass
PRODUCT DETAILS
| VESSEL LENGTH | 10-13M (32-42ft) |
| POWER SUPPLY (DC) | 12/24V |
| MOTOR (Watts) | 1000 |
| HYDRAULIC PRESSURE | 8MPa (1160PSI) |
| HYDRAULIC FLOW | 15L/ min (4gal/ min) |
| MAX LOAD | 500kg (1100lb) |
| WORKLOAD | 125kg (275lb) |
| AMPS WORKLOAD (DC) | 125/60 |
| MAX LINE SPEED | 15m/min (48ft/min) |
| RECOVERY RATE | N/A |
| CHAIN SIZE | 6mm (1/4"), 8mm (5/16"), 10mm (3/8") |
| ROPE SIZE | 12mm (1/2"), 14mm (9/16"), 16mm (5/8") |
| NET WEIGHT | DC VRC 22kg (48lb) | HYD VRC 17kg (38lb) |
| MANUAL OPERATION | MOS (std on most gypsy sizes) |
DIMENSIONS
FEATURES
Polished stainless steel components | Rope chain combination gypsy | Rope Chain Management System (RCMS)
Quick release integrated swivel chain pipe cover | Gypsy with low profile clutch top arrangement
Heavy duty marine grade | Dual direction motor in 12V and 24V DC, Hydraulic
Independent gypsy and capstan operation | Capstan model features heavy-duty knurled finish for increased grip
Quick fit adaptor | Stainless steel shaft | Cone clutch/brake
Stainless steel mounting studs | Shaft seal | Self-lubricating bush | Clutch release handle
Installation/Operation booklet | Manual Operation System (MOS)
