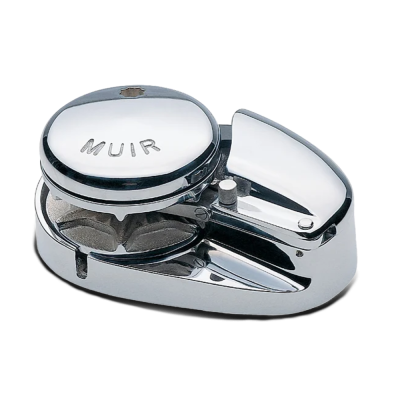

Muir Storm - VR3500 - 1500W - 12 or 24 V - 3500 lb Max Load
Designed for vessels up to 24m (77ft), and in low profile, the MUIR Storm windlass offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability.
Reference: VR3500-3/8BBB-12V
$5,400.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
MUIR - Storm VR 3500 Windlass
PRODUCT DETAILS
| VESSEL LENGTH | 15-24M (48-77ft) |
| POWER SUPPLY (DC) | 12/24V, AC Electric Available |
| MOTOR (Watts) | 1500 |
| HYDRAULIC PRESSURE | 10MPa (1450PSI) |
| HYDRAULIC FLOW | 28L/ min (7.5gal/ min) |
| MAX LOAD | 1590kg (3500lb) |
| WORKLOAD | 530kg (1167lb) |
| AMPS WORKLOAD (DC) | 185/90 |
| MAX LINE SPEED | 13.5m/min (44ft/min) |
| RECOVERY RATE | N/A |
| CHAIN SIZE | 10mm (3/8"), 13mm (1/2"), 8mm (5/16") |
| ROPE SIZE | 14mm (9/16"), 16mm (5/8") |
| NET WEIGHT | DC VR 42kg (92lb) | HYD VR 38kg (84lb) |
| MANUAL OPERATION | MORS (opt) |

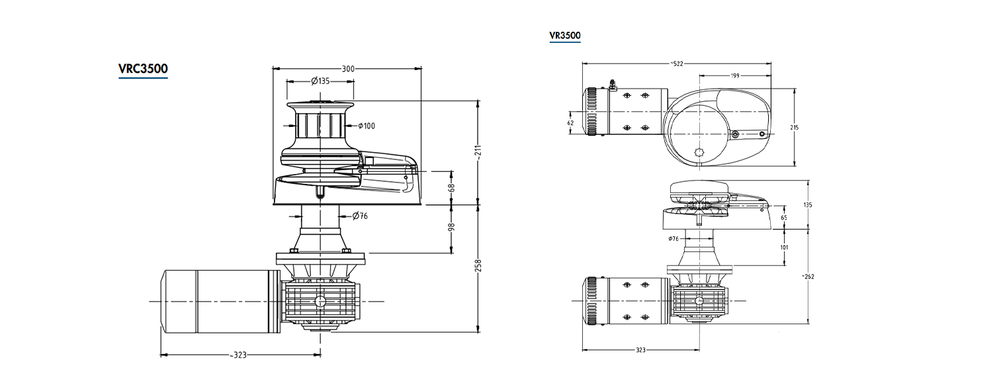

DIMENSIONS
FEATURES
Polished stainless steel components | Rope chain combination gypsy | Rope Chain Management System (RCMS)
Gypsy with low profile clutch top arrangement (VR)
Heavy duty marine grade, Dual direction motor in 12V and 24V DC, Hydraulic & AC
Independent gypsy
Stainless steel shaft | Cone clutch/brake | Quick release integrated swivel chain pipe cover
Stainless steel mounting studs | Shaft seal | Self-lubricating bush | Clutch release handle
Installation/Operation booklet | Self-aligning gearbox/ adaptor
