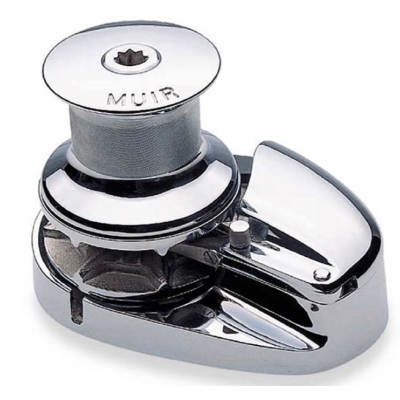

Muir Storm - VR/VRC3500 - 1500W - 12 or 24 V - 3500 lb Max Load
Designed for vessels up to 24m (77ft), and in low profile and capstan configurations, the MUIR Storm windlass offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability.
Reference: VR/VRC3500-3/8HT-12V
$5,220.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
MUIR - Storm VR/VRC 3500 Windlass
Designed for vessels up to 24m (77ft), and in low profile and capstan configurations, the MUIR Storm windlass offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability. Manufactured from polished stainless steel components the Storm Windlass will weather the harshest of conditions. Storm Windlasses represent the pinnacle of reliability and performance and are packed with the features and quality you have come to expect from Muir. Designed on the principals of the award-winning Atlantic series with all its features and more.
PRODUCT DETAILS
| VESSEL LENGTH | 15-24M (48-77ft) |
| POWER SUPPLY (DC) | 12/24V, AC Electric Available |
| MOTOR (Watts) | 1500 |
| HYDRAULIC PRESSURE | 10MPa (1450PSI) |
| HYDRAULIC FLOW | 28L/ min (7.5gal/ min) |
| MAX LOAD | 1590kg (3500lb) |
| WORKLOAD | 530kg (1167lb) |
| AMPS WORKLOAD (DC) | 185/90 |
| MAX LINE SPEED | 13.5m/min (44ft/min) |
| RECOVERY RATE | N/A |
| CHAIN SIZE | 10mm (3/8"), 13mm (1/2"), 8mm (5/16") |
| ROPE SIZE | 14mm (9/16"), 16mm (5/8") |
| NET WEIGHT | DC VR 42kg (92lb), VRC 46kg (101lb) | HYD VR 38kg (84lb) VRC 42kg (92lb) |
| MANUAL OPERATION | MORS (opt) |
DIMENSIONS
FEATURES
Polished stainless steel components | Rope chain combination gypsy | Rope Chain Management System (RCMS)
Gypsy with capstan (VRC) or Gypsy with low profile clutch top arrangement (VR)
Heavy duty marine grade, Dual direction motor in 12V and 24V DC, Hydraulic & AC
Independent gypsy and capstan operation | Capstan model features heavy-duty knurled finish for increased grip
Stainless steel shaft | Cone clutch/brake | Quick release integrated swivel chain pipe cover
Stainless steel mounting studs | Shaft seal | Self-lubricating bush | Clutch release handle
Installation/Operation booklet | Self-aligning gearbox/ adaptor
