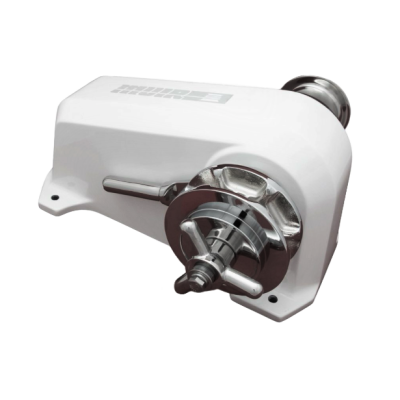

Muir Cougar - HR1600 - 1000W - 12 or 24V - 1200 lb MAX LOAD - Windlass
Compact Cougar horizontal windlass are suitable for boats from 5-9m (16-29ft). The housing is made of highly polished 316 Stainless steel. The powerful and compact windlasses have been designed for vessels with limited space under the deck. Easy to install and works with chain only or rope and chain combination.
Reference: HR1600-3/8HT-12V
$4,560.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
MMuir Cougar - HR1600 - 1000W - 12 or 24V - 1200 lb MAX LOAD - Windlass
Designed for vessels up to 5-9m (16-29ft), and in low profile and capstan configurations, the MUIR Windlass offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability. Manufactured from polished stainless steel components the Muir Windlass will weather the harshest of conditions. Storm Windlasses represent the pinnacle of reliability and performance and are packed with the features and quality you have come to expect from Muir. Designed on the principals of the award-winning Atlantic series with all its features and more.
PRODUCT DETAILS
| VESSEL LENGTH | 5-9m (16-29ft) |
| POWER SUPPLY (DC) | 12 V or 24 V |
| MOTOR (Watts) | 1000 W |
| HYDRAULIC PRESSURE | N/A |
| HYDRAULIC FLOW | N/A |
| MAX LOAD | 115kg (253lb)/ 227kg (500lb) |
| WORK LOAD | 29kg (63lb)/ 57kg (125lb) |
| AMPS WORKLOAD (DC) | 75 |
| MAX LINE SPEED | 25m/min (80ft/min) |
| RECOVERY RATE | N/A |
| CHAIN SIZE | N/A |
| ROPE/ CHAIN SIZE | N/A |
| ROPE SIZE | 10mm (3/8"), 12mm (1/2") |
| NET WEIGHT | DC 9kg (20lb) |
| MANUAL OPERATION | MORS (std) |

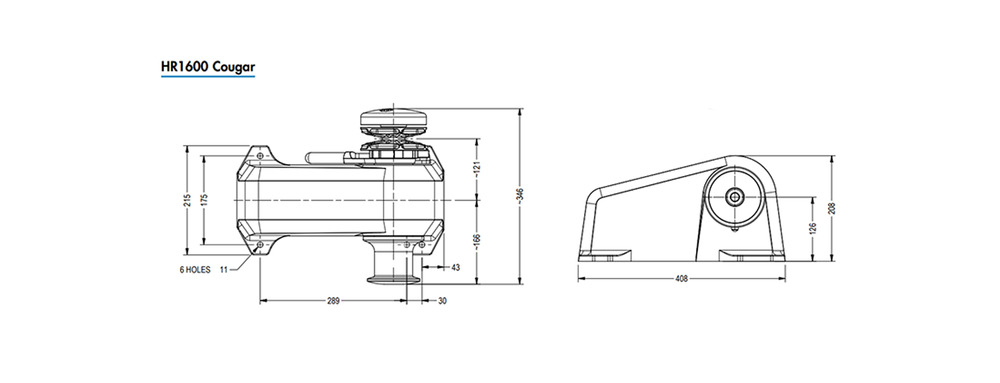

DIMENSIONS
FEATURES
Deck hugging snag-free design
Unit can be mounted horizontally | Chain only
Heavy duty dual direction motor in 12 & 24V DC (Hydraulic HR2500 only)
Durable marine grade white gloss composite housing | Fully enclosed motor & gearbox
Independent gypsy and capstan operation | Luxury chromed marine grade bronze / 316 Stainless steel running gear
Stainless steel drive shaft | Deck mounting studs & fasteners | Cone clutch/brake
